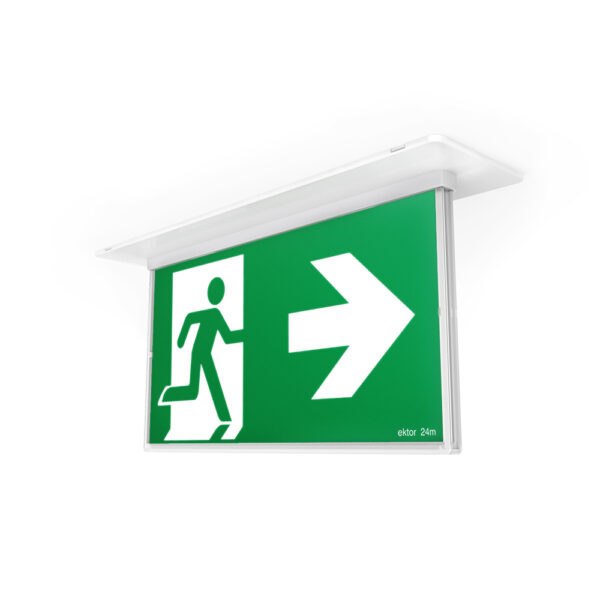

Razor Core Recessed Exit Light | IP20 Rated | Maintained Emergency Mode | 24m Viewing Distance | by Ektor
The Razor Core Recessed Exit Light is designed for discreet installation in commercial buildings, featuring an IP20 rating and a maintained emergency mode with a 90-minute duration. Ideal for public spaces and corridors, this light ensures safety with a 24-meter viewing distance and a durable polycarbonate body, making it a reliable choice for emergency exit lighting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Recessed LED Exit Sign, Emergency Exit Light, Maintained Exit Sign, Emergency Exit Indicator
Technical Specifications
- IP Rating: IP20
- Input Voltage: 230Vac (-6%/+10%)
- Input Frequency: 50 Hz
- Maximum Wattage: 2.5 W
- Standby Power: 2.3 W
- Driver Type: Fixed output, integrated
- Dimmable: No
- Emergency Mode: Maintained
- Emergency Classification: C0:E6.3, C90:E20
- Emergency Output Power: 1000 mW
- Emergency Duration: 90 minutes
- Viewing Distance: 24 meters
- Body Material: Polycarbonate
- Diffuser Material: PMMA
- Flex & Plug Length: 1200 mm
- Wiring Type: Re-wireable Flex & Plug (2 pin)
- Decal Size: 300 x 150 mm
- Product Design Life: 6 years
- Dimensions (H x L x W): 180mm x 80mm x 320mm
- Weight: 1.2 kg
Key Features
- Recessed installation type for discreet mounting
- Maintained emergency mode with 90 minutes duration
- Fixed output integrated driver included
- Viewing distance of 24 meters
- Polycarbonate body with PMMA diffuser
- Non-dimmable with 2.5W maximum wattage
- Standby power consumption of 2.3W
- Replacement battery code 13972
- Decal size 300 x 150 mm
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure compliance with electrical and safety standards.
Applications
- Commercial buildings for emergency exit lighting
- Public spaces requiring maintained emergency lighting
- Recessed installation in corridors and exit routes
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting Luminaires
- AS/NZS 61347.1 – Lamp Control Gear
- AS/NZS 61347.2.13 – Emergency Lighting Control Gear
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Low power consumption reduces energy usage during standby and operation
- Long product design life of 6 years minimizes waste and replacement frequency
Warranty Information
5 years return to base warranty for commercial use.
Available Now
The Ektor Razor Core Recessed Exit Light 24M - Black is available for immediate purchase, ideal for commercial and public building emergency lighting applications.
