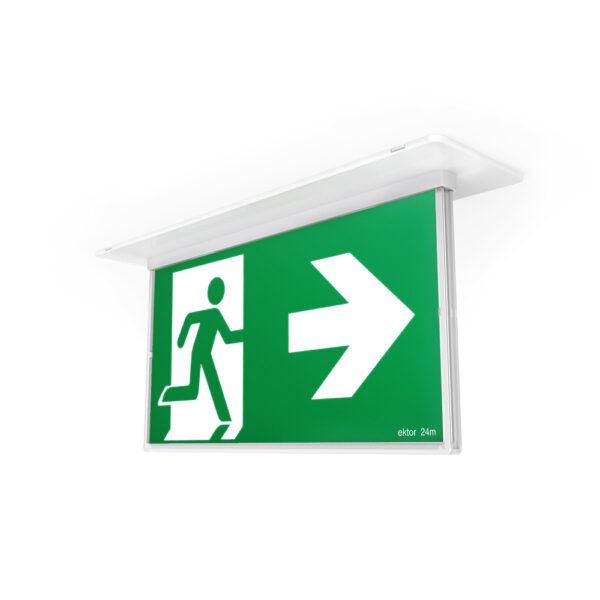

Razor Core Recessed Exit Light | IP20 Rated | Maintained Emergency Mode | 90 Minutes Duration | by Ektor
The Razor Core Recessed Exit Light is designed for discreet installation in commercial and industrial settings, featuring an IP20 rating and a maintained emergency mode with a 90-minute duration. With a viewing distance of 24 meters and a durable polycarbonate body, this exit light ensures safety and compliance in emergency situations, making it ideal for public spaces and commercial buildings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Recessed LED Exit Sign, Emergency Exit Light, Maintained Exit Sign, Emergency Exit Indicator
Technical Specifications
- IP Rating: IP20
- Input Voltage: 230Vac (-6%/+10%)
- Input Frequency: 50 Hz
- Maximum Wattage: 2.5 W
- Standby Power: 2.3 W
- Driver Type: Fixed output, integrated
- Dimmable: No
- Working Temperature Range: 0 to 40 °C
- Emergency Classification: C0:E6.3, C90:E20
- Emergency Duration: 90 minutes
- Replacement Battery Code: 13972
- Decal Size: 300 x 150 mm
- Emergency Light Source Life: Approximately 78 years (projected)
- Dimensions (H x L x W): 180mm x 80mm x 320mm
- Weight: 1.2 kg
Key Features
- Recessed installation type for discreet mounting
- Polycarbonate body with PMMA diffuser for durability
- Maintained emergency mode with 90 minutes duration
- Fixed output integrated driver included
- Viewing distance of 24 meters
- Emergency output power of 1000 mW
- Non-dimmable design
- 1200 mm re-wireable flex and plug (2 pin)
- Product design life of 6 years under normal use
- Complies with multiple Australian standards for safety and performance
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical and safety standards.
Applications
- Commercial buildings for emergency exit lighting
- Public spaces requiring maintained emergency lighting
- Industrial facilities needing compliant exit signage
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting Luminaires
- AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
- AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Low power consumption with 2.5W maximum wattage
- Long product design life reduces waste and replacement frequency
- Energy-efficient LED technology
Warranty Information
5 years return to base warranty for commercial use.
Available Now
The Ektor Razor Core Recessed Exit Light 24M is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
