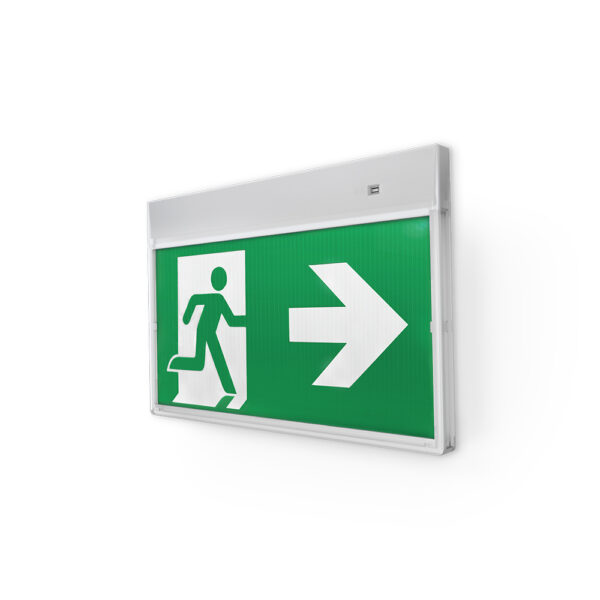

Razor-Flex Pro Slimline Emergency Edgelit Exit | Maintained Mode | 90 Minutes Duration | DALI Monitored | by Ektor
The Razor-Flex Pro Slimline Emergency Edgelit Exit is designed for reliable emergency exit signage in commercial and industrial settings. With a maintained emergency mode lasting 90 minutes and a viewing distance of 24 meters, this exit sign ensures safety during power outages. Featuring a frosted polycarbonate body and DALI DT1 emergency driver, it’s perfect for public facilities and commercial buildings requiring compliance with emergency lighting standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency Exit Sign, Edgelit Exit Sign, Emergency Exit Light, DALI Emergency Exit Sign
Technical Specifications
- IP Rating: IP20
- Body Material: Polycarbonate
- Diffuser Material: PMMA
- Installation Type: Surface mount
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Maximum Wattage: 3.7 W
- Input Voltage: 230Vac (-6%/+10%)
- Standby Power: 1.7 W
- Driver Type: DALI DT1 Emergency
- Emergency Mode: Maintained
- Emergency Classification: C0:D5, C90:E3.2
- Emergency Output Power: 1000 mW
- Emergency Duration: 90 minutes
- Emergency Light Source Life: 22 years
- Decal Size: 300 x 150 mm
- Emergency Control: DALI Monitored (DT1)
- Dimensions (H x L x W): 150mm x 50mm x 350mm
- Weight: 1.2 kg
Key Features
- Maintained emergency mode with 90 minutes duration
- DALI DT1 emergency driver included and integrated
- Surface mount installation with frosted polycarbonate body
- Viewing distance of 24 meters
- DALI monitored with support for emergency test and monitoring
- Mechanical IP20 rated for indoor use
- Emergency output power of 1000 mW
- Replacement battery code 01302
- Decal size 300 x 150 mm
- Product design life of 12 years
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with emergency lighting and DALI systems to ensure compliance and safety.
Applications
- Commercial buildings emergency exit signage
- Public facilities requiring emergency lighting
- Industrial sites needing maintained emergency exit signs
Standards & Compliance
- AS/NZS 60598.1
- AS 60598.2.22
- AS/NZS 61347.1
- AS/NZS 61347.2.13
- AS CISPR 15
- AS/NZS 2293.3
Environmental Benefits
- Long product design life reduces waste and replacement frequency
- Low standby power consumption minimizes energy use
- LED technology offers energy-efficient emergency lighting
Warranty Information
8 years return to base warranty for commercial use.
Available Now
The Razor-Flex Pro Slimline Emergency Edgelit Exit 24M by Ektor is available for immediate purchase, ideal for commercial and industrial emergency exit signage applications.
