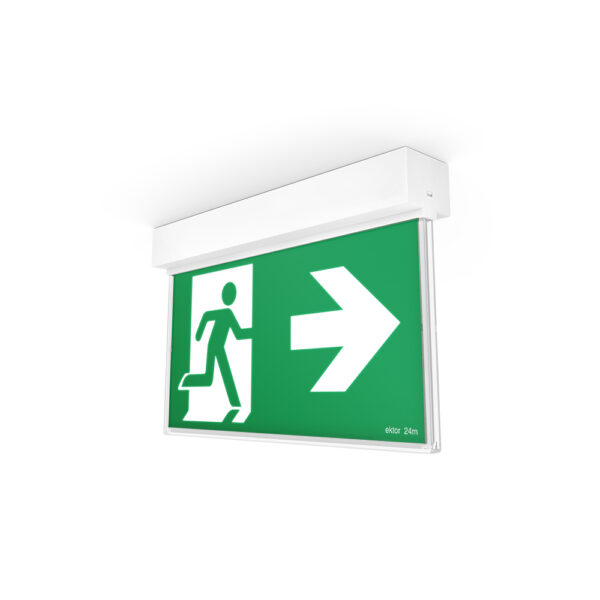

Razor Surface Mount Advanced Emergency Exit | DALI Driver Included | 90 Min Duration | 24m Viewing Distance | by Ektor
Razor Surface Mount Advanced Emergency Exit is designed for reliable emergency signage in commercial and industrial settings. Featuring a DALI driver for seamless integration, this exit light offers a maintained emergency mode with a 90-minute duration and a 24-meter viewing distance. Built with a durable polycarbonate body and PMMA diffuser, it ensures optimal performance and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Emergency Exit Sign, DALI Emergency Exit Light, Surface Mounted Exit Sign, LED Emergency Exit Sign
Technical Specifications
- IP Rating: IP20
- Body Material: Polycarbonate
- Diffuser Material: PMMA
- Installation Type: Surface mount
- Working Temperature Range: 0 to 40 °C
- Input Frequency: 50 Hz
- Input Voltage: 230Vac (216Vac - 253Vac range in Australia)
- Maximum Wattage: 2.6 W
- Standby Power: 1.9 W
- Driver Type: EV-RAZOR-SM-ADV-24M-DA DALI DT1 Emergency
- Wiring Type: Re-wireable terminal block (5 pin)
- Emergency Mode: Maintained
- Emergency Classification: C0:E6.3, C90:E10
- Emergency Output Power: 650 mW
- Emergency Duration: 90 minutes
- Viewing Distance: 24 meters
- Decal Size: 300 x 150 mm
- Emergency Light Source Life: 34 years 4 months (projected)
- Product Design Life: 8 years
- Dimensions (H x L x W): 150mm x 80mm x 300mm
- Weight: 1.2 kg
Key Features
- Surface mount installation with white polycarbonate body and PMMA diffuser
- Maintained emergency mode with 90 minutes duration
- DALI DT1 emergency driver included with wireless IEC62386-104 monitoring support
- Emergency output power of 650 mW with 24 meter viewing distance
- Supports emergency test and monitoring over DALI with full IEC62386-202 compliance
- Product design life of 8 years including LEDs, drivers, and enclosure
- IP20 rated for indoor use
- Standby power consumption of 1.9 W
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical and safety standards and proper integration with DALI emergency systems.
Applications
- Commercial buildings emergency exit signage
- Public facilities requiring maintained emergency lighting
- Industrial sites with DALI monitored emergency systems
Standards & Compliance
- AS/NZS 60598.1 – Luminaires General Requirements
- AS 60598.2.22 – Emergency Lighting
- AS/NZS 61347.1 – Lamp Control Gear
- AS/NZS 61347.2.13 – Emergency Lighting Control Gear
- AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
- AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
- Low power consumption with 2.6 W maximum wattage and 1.9 W standby power reduces energy use
- Long product design life of 8 years minimizes waste and replacement frequency
- LED technology offers extended lifespan and lower environmental impact compared to traditional lighting
Warranty Information
6 years return to base (RTB) commercial use warranty.
Available Now
The Ektor Razor Surface Mount Advanced Emergency Exit - 24M - DALI is available for immediate purchase, ideal for commercial and industrial emergency lighting applications.
