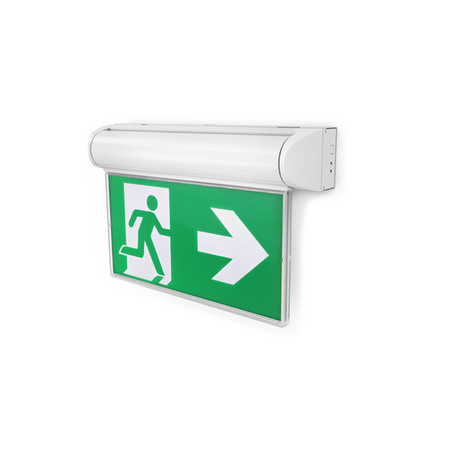

Razor Swing Surface Mounted Emergency Exit IP20 Rated Ektor

BRAND: Ektor
SKU: EV-RAZOR-SWING-24M-PRO
$403.50 List price: $488.40
+ −
30 Days Return Electricians Unlock Trade Access
Ektor Razor Swing Surface Mounted Emergency Exit features 750m power rating, 24m viewing distance, and 300 x 150mm decal size.

Alternatively Known As: Emergency Exit Sign, Emergency Exit Light, Maintained Emergency Exit Sign, DALI Emergency Exit Sign, Surface Mounted Exit Sign

Technical Specifications
  • IP Rating: IP20
  • Body Material: Polycarbonate
  • Diffuser Material: PMMA
  • Installation Type: Surface mount
  • Input Voltage: 230Vac (216Vac - 253Vac range)
  • Input Frequency: 50 Hz
  • Maximum Wattage: 3.7 W
  • Standby Power: 1.7 W
  • Driver Type: DALI DT1 Emergency with integrated driver
  • Wiring Type: Re-wireable terminal block (5 pin)
  • Emergency Mode: Maintained
  • Emergency Classification: C0:E6.3, C90:E16
  • Emergency Output Power: 750 mW
  • Emergency Duration: 90 minutes
  • Viewing Distance: 24 meters
  • Decal Size: 300 x 150 mm
  • Operating Temperature Range: 0 to 40 °C
  • Emergency Light Source Life: 31 years 6 months
  • Product Design Life: 12 years
  • Dimensions (H x L x W): 200mm x 100mm x 350mm
  • Weight: 1.5 kg
Key Features
  • Surface mount installation with adjustable fitting
  • Polycarbonate body with PMMA diffuser
  • Maintained emergency mode with 90 minutes duration
  • DALI DT1 Emergency driver included with integrated driver
  • Supports wireless test and monitoring over IEC62386-104
  • Viewing distance of 24 meters
  • Emergency output power of 750 mW
  • Standby power consumption of 1.7 W
  • Maximum wattage 3.7 W
  • Operating temperature range 0 to 40 °C
  • IP20 rated for indoor use
Professional Installation Requirements
  • Professional installation by a qualified electrician is required to ensure compliance with emergency lighting standards and proper DALI system integration.
Applications
  • Commercial buildings emergency exit signage
  • Industrial facilities emergency lighting
  • Public spaces requiring maintained emergency exit signs
Standards & Compliance
  • AS/NZS 60598.1 – Luminaires General Requirements
  • AS 60598.2.22 – Emergency Lighting
  • AS/NZS 61347.1 – Lamp Control Gear General and Safety Requirements
  • AS/NZS 61347.2.13 – Particular Requirements for Emergency Lighting
  • AS CISPR 15 – Limits and Methods of Measurement of Radio Disturbance
  • AS/NZS 2293.3 – Emergency Escape Lighting and Exit Signs
Environmental Benefits
  • Low power consumption with 3.7 W maximum wattage
  • Long product design life of 12 years reduces waste
  • LED technology for energy-efficient emergency lighting
Warranty Information

8 years return to base warranty for commercial use.

Available Now

The Ektor Razor Swing Surface Mounted Emergency Exit 24M - PRO is available for immediate purchase, ideal for commercial and industrial emergency exit signage applications.
