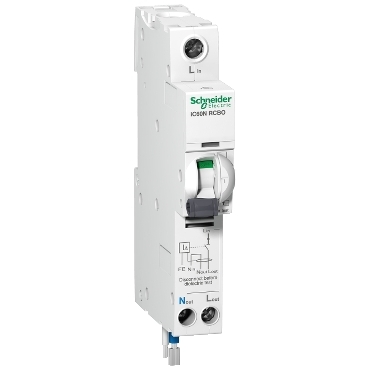

RCBO 10A 6KA 240V 30mA | Type A | DIN Rail Mount | 2 Module Width | @Pack of 1 | by Clipsal

BRAND: Clipsal
SKU: SCHA9D61810
$66.90 List price: $83.40
+ −
30 Days Return Electricians Unlock Trade Access
The RCBO 10A 6KA 240V 30mA is a Type A residual current circuit breaker that combines RCD and MCB functionalities in one unit. Designed for residential and commercial electrical distribution, it offers protection against earth leakage, overload, and short circuits. With a 2 module width for easy installation, this device ensures safety and compliance with Australian standards.

Product Name/Title: RCBO 10A 6KA 240V 30mA | Type A | DIN Rail Mount | 2 Module Width | @Each of 1 | by Clipsal

Brand: Clipsal

SKU: SCHA9D61810

Alternatively Known As: Residual Current Circuit Breaker with Overcurrent, RCBO breaker, Clipsal RCBO, 10A RCBO, SCHA9D61810

Technical Specifications
  • Rated current: 10A
  • Breaking capacity: 6kA
  • Rated voltage: 240V AC
  • Residual current sensitivity: 30mA
  • Type A RCBO
  • 2 module width
  • Mounting: DIN rail
  • Trip curve: C
  • Dimensions (H x L x W): 85mm x 75mm x 36mm
  • Weight: 0.15 kg
Key Features
  • Combined residual current device (RCD) and miniature circuit breaker (MCB) in one unit
  • Rated current: 10A
  • Breaking capacity: 6kA
  • Rated voltage: 240V AC
  • Residual current sensitivity: 30mA
  • 2 module width for easy installation
  • Provides protection against earth leakage, overload, and short circuit
Professional Installation Requirements
  • Must be installed by a licensed electrician in accordance with Australian standards and local regulations.
Applications
  • Residential and commercial electrical distribution boards
  • Protection of final sub-circuits against earth leakage and overcurrent
  • Suitable for lighting and power circuits
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 61009.1 – Residual current operated circuit-breakers with integral overcurrent protection
Environmental Benefits
  • Enhances electrical safety, reducing risk of fire and electrical hazards
  • Long operational life reduces replacement frequency and waste
Warranty Information

12 months manufacturer's warranty.

Available Now

The Clipsal RCBO 10A 6KA 240V 30mA 2M (SCHA9D61810) is available for immediate purchase. Ideal for residential and commercial switchboard protection.
