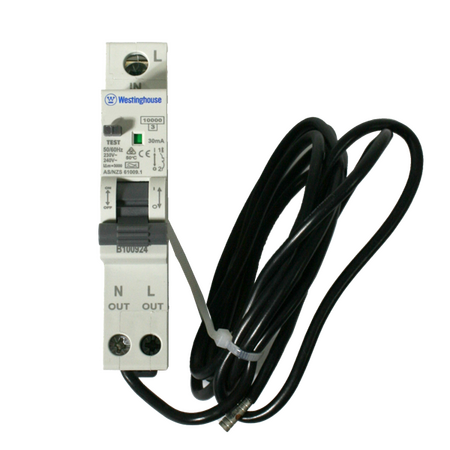

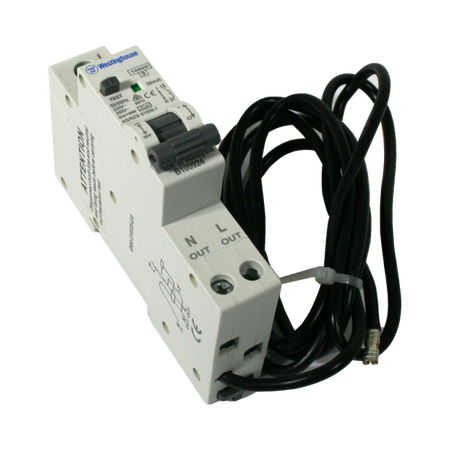

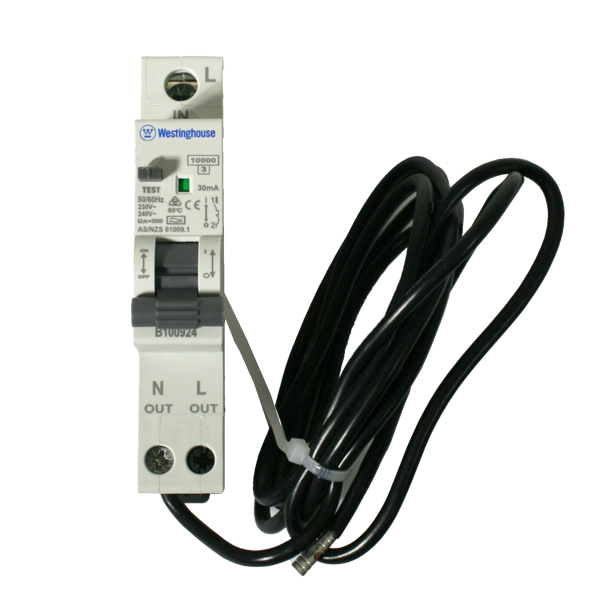

RCBO 16A 30mA 1P C Curve 10kA Chassis Mount | Secure Installation | General Use by Eltech
RCBO 16A with 30mA sensitivity and C Curve tripping—ideal for residential and commercial electrical systems. Built for safety and reliability, with a 10kA breaking capacity and chassis mount design for secure installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCBO 16A 30mA 1P C Curve 10kA Chassis Mount
Brand: Eltech
SKU: ODN1C1630AH
Alternatively Known As: RCBO 16 Amp 30mA Residual Current Breaker, 1 Pole RCBO, C Curve RCBO, 10kA RCBO
Technical Specifications
- Rated Current: 16A
- Residual Current: 30mA (A type)
- Poles: 1 Pole
- Tripping Curve: C Curve
- Breaking Capacity: 10kA
- Mounting Type: Chassis Mount
- Dimensions (H x L x W): 85mm x 70mm x 18mm
- Weight: 0.2 kg
Key Features
- 16 Ampere current rating
- 30mA residual current sensitivity (A type)
- C Curve tripping characteristic for general use
- 10kA short circuit breaking capacity
- Chassis mount design for secure installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards.
Applications
- Residential electrical distribution boards
- Commercial power distribution panels
- Industrial circuit protection systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Helps prevent electrical fires by detecting earth leakage currents
- Enhances electrical safety reducing risk of electrical accidents
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Eltech RCBO 16A 30mA 1P C Curve 10kA Chassis Mount is available now for immediate purchase. Ideal for enhancing safety in residential, commercial, and industrial electrical installations.
