RCBO 16A 30mA 3P C Curve 10kA Chassis Mount | Secure Installation | General Use by Eltech
RCBO 16A with 30mA residual current sensitivity and 10kA breaking capacity—ideal for residential and commercial power distribution. Built for safety and reliability, with a chassis mount design for secure installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

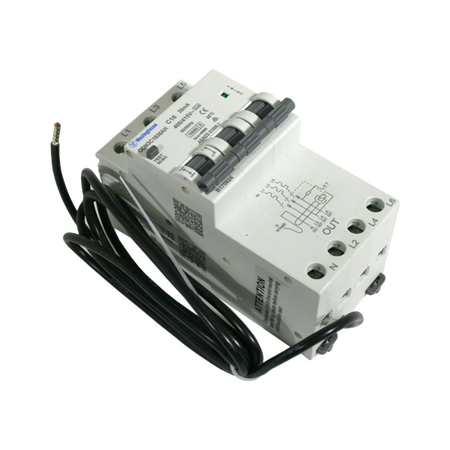

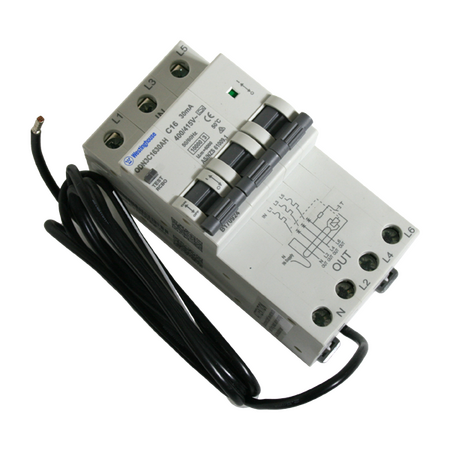

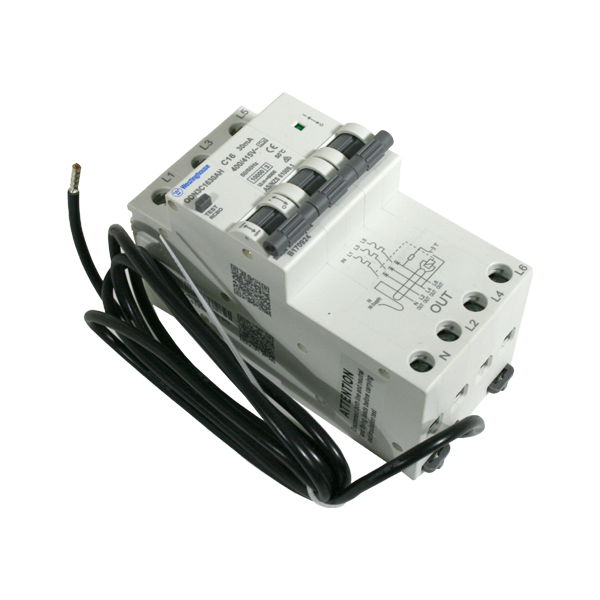

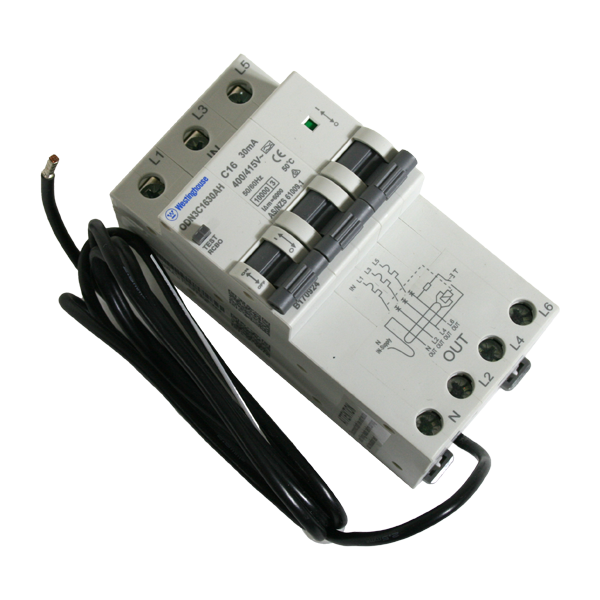

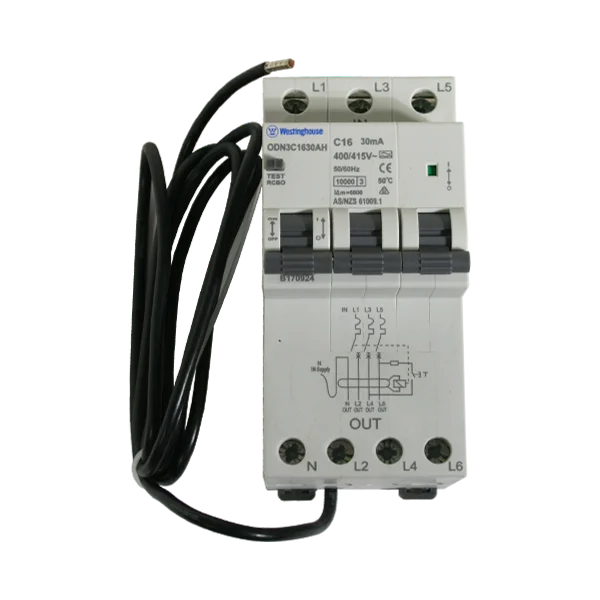

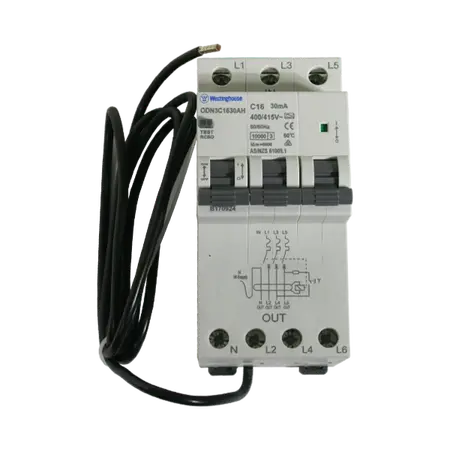

Product Name/Title: RCBO 16A 30mA 3P C Curve 10kA Chassis Mount
Brand: Eltech
SKU: ODN3C1630AH
Alternatively Known As: Residual Current Breaker with Overcurrent Protection, 16A RCBO, 3 Pole RCBO, 30mA RCD Circuit Breaker
Technical Specifications
- Rated Current: 16A
- Residual Current: 30mA (A type)
- Poles: 3 Pole + Neutral
- Trip Curve: C Curve
- Breaking Capacity: 10kA
- Mounting Type: Chassis Mount
- Dimensions (H x L x W): 80mm x 70mm x 90mm
- Weight: 0.3 kg
Key Features
- 16 Ampere current rating
- 30mA residual current trip sensitivity (A type)
- 3 Pole with neutral protection
- C Curve trip characteristic for general use
- 10kA short circuit breaking capacity
- Chassis mount design for secure installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards and proper operation.
Applications
- Residential electrical distribution boards
- Commercial power distribution panels
- Industrial circuit protection systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and faults
- Supports energy efficiency by preventing electrical faults and power wastage
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Eltech RCBO 16A 30mA 3P C Curve 10kA Chassis Mount is available now for immediate purchase. Ideal for enhancing safety in power distribution and circuit protection applications.
