RCBO 18mm 1P+N 30mA 6kA Breaking Capacity | Compact Design | Noark
RCBO 18mm with 1P+N configuration and 30mA residual current rating—ideal for residential and commercial electrical installations. Built for safety, with a 6kA breaking capacity and compact design for easy integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

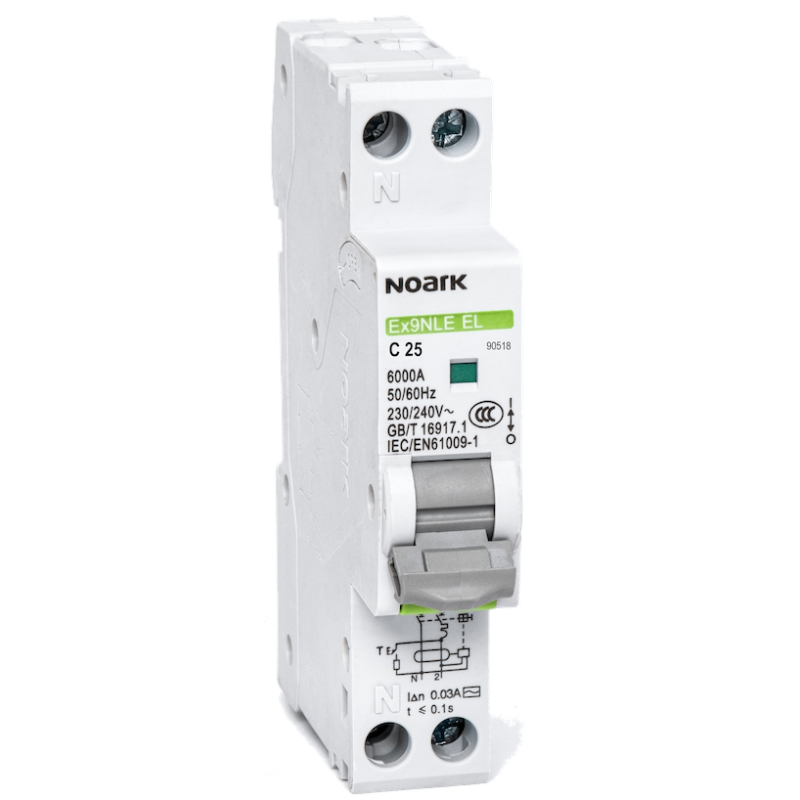

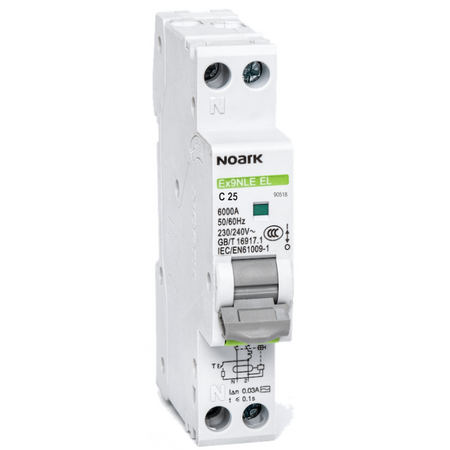

Product Name/Title: EX9NLE EL 1PN C25 30mA A IEC
Brand: Noark
SKU: 90518
Alternatively Known As: Residual Current Breaker with Overload, RCBO 18mm, Ex9NLE EL RCBO, Noark Residual Current Device
Technical Specifications
- Compliance with EN 61009-1
- Breaking capacity: 6 kA
- Pole configuration: 1P+N
- Residual current rating: 30 mA
- Current rating: up to 40 A
- Tripping characteristic: Type C
- Module width: 18 mm
- Operating temperature: -35 to +70°C
- Dimensions (H x L x W): 80mm x 70mm x 18mm
- Weight: 0.1 kg
Key Features
- One-module Residual Current Circuit Breaker with Overload protection according to EN 61009-1
- Rated breaking capacity Icn 6 kA
- 1P+N-pole version
- Rated residual current 30 mA
- Rated currents up to 40 A
- C tripping characteristics of integrated circuit breaker
- A type RCBO
- Compact 1-module (18 mm) width
- Operating temperature range from -35 to +70°C
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards and proper device function.
Applications
- Residential electrical installations
- Commercial electrical panels
- Industrial control systems requiring residual current protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and faults
- Supports energy-efficient electrical system protection
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.
Available Now
The Noark RCBO 18mm Ex9NLE EL 1PN C25 30mA A IEC is available for immediate purchase, ideal for enhancing electrical safety in residential, commercial, and industrial electrical installations.
