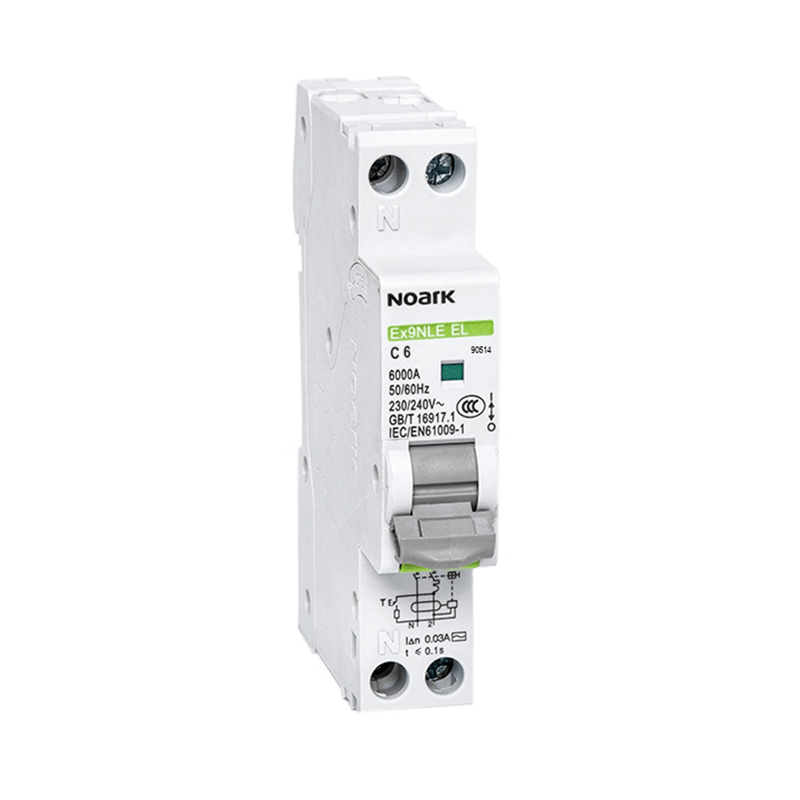

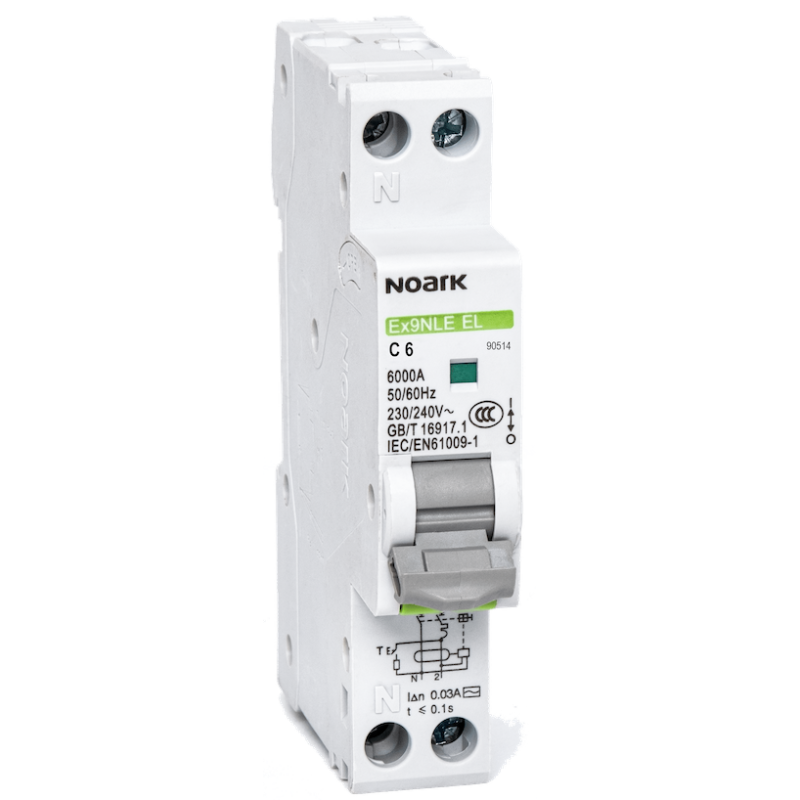

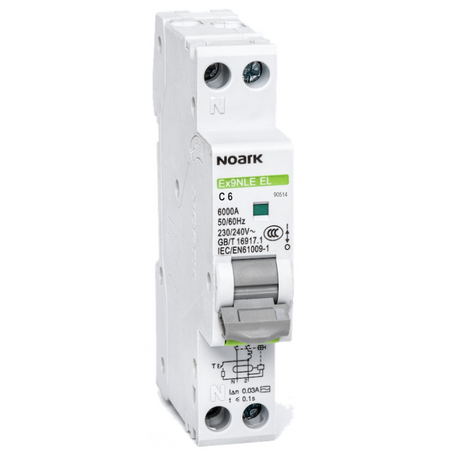

RCBO 18mm 1P+N 30mA | 6kA Breaking Capacity | Type C Tripping by Noark
RCBO 18mm with 1P+N configuration and 30mA residual current—ideal for residential and commercial electrical installations. Built for safety, with a 6kA breaking capacity and compact design for easy integration.
Sign in
Please login to continue to your account.
Product Name/Title: EX9NLE EL 1PN C6 30mA A IEC
Brand: Noark
SKU: 90514
Alternatively Known As: Residual Current Breaker with Overload, RCBO 18mm, Noark Ex9NLE EL RCBO
- Rated breaking capacity: 6 kA
- Pole configuration: 1P+N
- Rated residual current: 30 mA
- Rated current: up to 40 A
- Tripping characteristic: Type C
- Type: A RCBO
- Module width: 18 mm
- Operating temperature range: -35°C to +70°C
- Dimensions (H x L x W): 85mm x 70mm x 18mm
- Weight: 0.1 kg
- One-module Residual Current Circuit Breaker with Overload protection according to EN 61009-1
- Rated breaking capacity Icn 6 kA
- 1P+N-pole version
- Rated residual current 30 mA
- Rated currents up to 40 A
- C tripping characteristics of integrated circuit breaker
- A type of RCBO
- Compact 1-module (18 mm) width
- Suitable for applications from -35 to +70 degrees Celsius
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards.
- Residential electrical installations
- Commercial electrical panels
- Industrial control panels requiring residual current protection
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Enhances electrical safety reducing risk of electrical fires and faults
- Supports energy-efficient electrical system protection
Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.
The Noark RCBO 18mm Ex9NLE EL 1PN C6 30mA A IEC is available for immediate purchase, ideal for enhancing electrical safety in residential, commercial, and industrial electrical installations.
