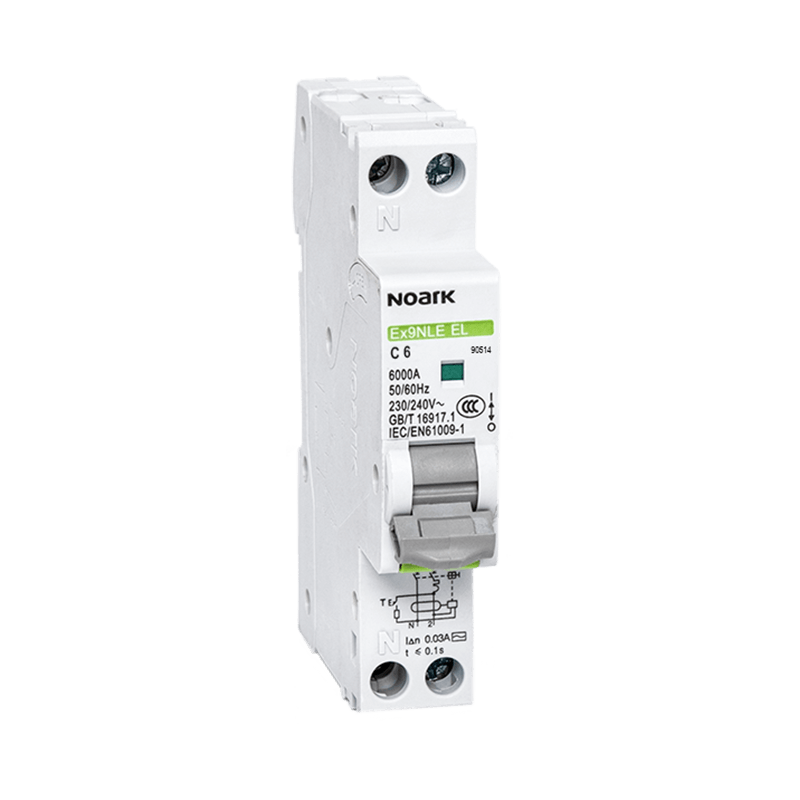

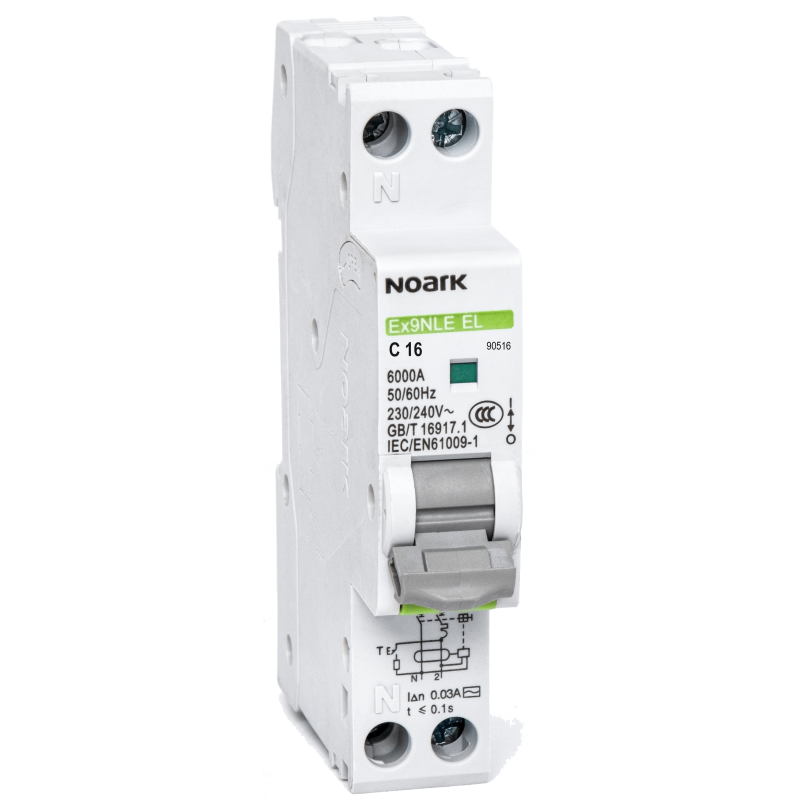

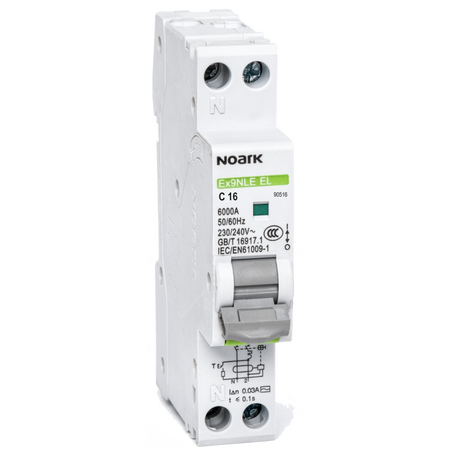

RCBO 18mm 1P+N 30mA C16 | Rated Breaking Capacity 6kA | A Type by Noark
RCBO 18mm with 1P+N configuration and 30mA rated residual current—ideal for residential and commercial electrical systems. Built for safety and compliance, featuring a rated breaking capacity of 6kA and suitable for temperatures from -35 to +70°C.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: EX9NLE EL 1PN C16 30mA A IEC
Brand: Noark
SKU: 90516
Alternatively Known As: Residual Current Breaker with Overload, RCBO 18mm, Noark Ex9NLE EL RCBO
Technical Specifications
- Compliance with EN 61009-1
- Rated breaking capacity Icn 6 kA
- 1P+N-pole configuration
- Rated residual current: 30 mA
- Rated current up to 40 A
- C tripping characteristics
- A type RCBO
- Operating temperature range: -35 to +70°C
- Module width: 18 mm
- Dimensions (H x L x W): 85mm x 70mm x 18mm
- Weight: 0.1 kg
Key Features
- One-module Residual Current Circuit Breaker with Overload protection according to EN 61009-1
- Rated breaking capacity Icn 6 kA
- 1P+N-pole version
- Rated residual current 30 mA
- Rated currents up to 40 A
- C tripping characteristics of integrated circuit breaker
- A type of RCBO
- 1-module (18 mm) width
- Suitable for applications from -35 to +70°C
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with local electrical codes and safety standards.
Applications
- Residential electrical installations
- Commercial electrical systems
- Industrial electrical protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and faults
- Supports energy-efficient electrical system protection
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.
Available Now
The Noark RCBO 18mm Ex9NLE EL 1PN C16 30mA A IEC is available for immediate purchase, ideal for enhancing electrical safety in residential, commercial, and industrial installations.
