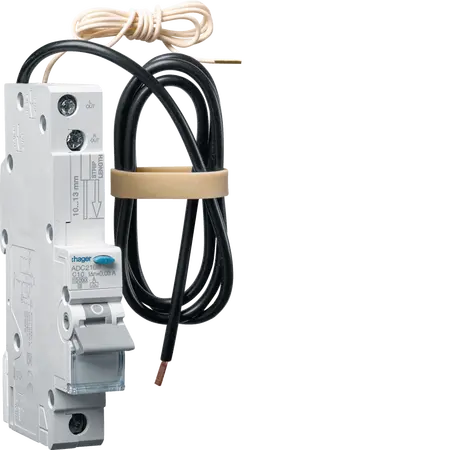

RCBO 1M 1P 10kA C-10A 30mA | DIN Rail | Compact by Hager
RCBO with 10A rated current and 30mA residual current—ideal for residential and commercial electrical safety. Built for high breaking capacity of 10kA, with compact DIN rail installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCBO 1M 1P 10kA C-10A 30mA A
Brand: Hager
SKU: ADC210B
Alternatively Known As: Residual Current Circuit Breaker, RCBO, Circuit Protection Device
Technical Specifications
- Type of pole: 1P
- Curve: C
- Rated current: 10 A
- Rated residual operating current: 30 mA
- Rated short-circuit breaking capacity: 10 kA
- Rated insulation voltage: 250 V
- Rated operational voltage: 230 - 240 V
- Operating temperature: -5 to 40 °C
- Storage temperature: -40 to 70 °C
- Number of mechanical operations: 10,000
- Dimensions (H x L x W): 115mm x 70mm x 18mm
- Weight: 0.5 kg
Key Features
- Rated current of 10 A with a residual current of 30 mA.
- High breaking capacity of 10 kA.
- Suitable for DIN rail installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Electrical safety in various installations
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- RoHS compliant, contributing to reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager RCBO 1M 1P 10kA C-10A 30mA A is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
