Trade Discount 22%

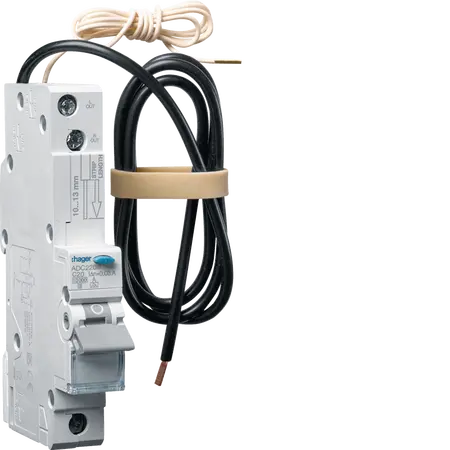

RCBO 1M 1P 10kA C-20A | 30mA Residual Current | Compact Design by Hager
RCBO with 1 pole and 10kA breaking capacity—ideal for residential and commercial circuit protection. Built for safety with 20A rated current and 30mA residual current, ensuring reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCBO 1M 1P 10kA C-20A 30mA A
Brand: Hager
SKU: ADC220B
Alternatively Known As: Residual Current Circuit Breaker, RCBO, Circuit Protection Device
Technical Specifications
- Type of pole: 1P
- Rated current: 20 A
- Rated residual operating current: 30 mA
- Rated short-circuit breaking capacity: 10 kA
- Rated insulation voltage: 250 V
- Rated operational voltage: 230 - 240 V
- Operating temperature: -5 to 40 °C
- Storage temperature: -40 to 70 °C
- Number of modules: 1
- Dimensions (H x L x W): 115mm x 70mm x 18mm
- Weight: 0.5 kg
Key Features
- 1 Pole with Curve C for standard circuit protection.
- Rated current of 20 A and residual current of 30 mA.
- Rated short-circuit breaking capacity of 10 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- RoHS compliant, contributing to reduced environmental impact.
- Designed to improve energy efficiency and reduce carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager RCBO 1M 1P 10kA C-20A 30mA A is available now for immediate purchase. Ideal for residential and commercial applications requiring reliable circuit protection.
