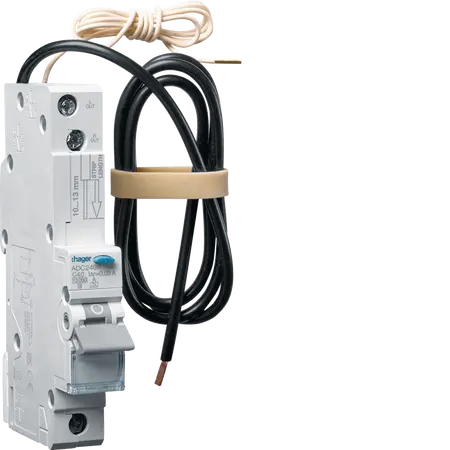

RCBO 1M 1P 10kA C-40A | 30mA Residual Current | DIN Rail Mount by Hager
RCBO with 1 pole and 10kA short-circuit capacity—ideal for residential and commercial circuit protection. Built for safety with 40A rated current and 30mA residual current, suitable for DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCBO 1M 1P 10kA C-40A 30mA A
Brand: Hager
SKU: ADC240B
Alternatively Known As: Residual Current Circuit Breaker, RCBO, Circuit Protection Device
Technical Specifications
- Type of pole: 1P
- Rated current: 40 A
- Rated residual operating current: 30 mA
- Rated short-circuit breaking capacity: 10 kA
- Rated insulation voltage: 250 V
- Rated operational voltage: 230 - 240 V
- Operating temperature: -5 to 40 °C
- Storage temperature: -40 to 70 °C
- Number of mechanical operations: 10,000
- Dimensions (H x L x W): 115mm x 70mm x 18mm
- Weight: 0.5 kg
Key Features
- 1 Pole with Curve C for standard protection
- Rated current of 40 A and residual current of 30 mA
- 10 kA short-circuit breaking capacity
- IP20 ingress protection rating
- Suitable for DIN rail mounting
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- RoHS compliant, reducing hazardous substances in electrical equipment.
- Commitment to improving environmental performance and reducing carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager RCBO 1M 1P 10kA C-40A 30mA A is available now for immediate purchase. Ideal for residential and commercial applications requiring reliable circuit protection.
