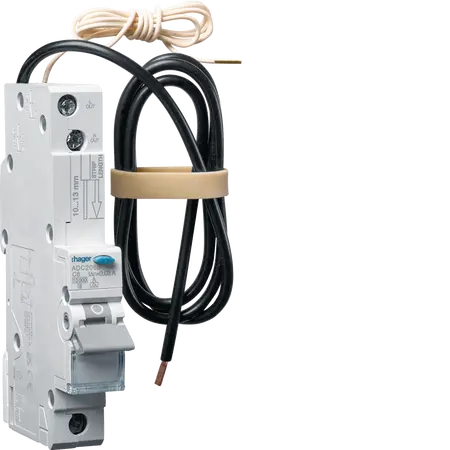

RCBO 1M 1P 10kA C-6A 30mA | High Breaking Capacity | Compact Design by Hager
RCBO with 1 pole and 10kA breaking capacity—ideal for residential and commercial circuit protection. Built for safety with 6A rated current and 30mA residual current, ensuring reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCBO 1M 1P 10kA C-6A 30mA A
Brand: Hager
SKU: ADC206B
Alternatively Known As: Residual Current Circuit Breaker, RCBO, Circuit Protection Device
Technical Specifications
- Type of pole: 1P
- Rated current: 6 A
- Rated residual operating current: 30 mA
- Rated short-circuit breaking capacity: 10 kA
- Rated insulation voltage: 250 V
- Rated operational voltage: 230 - 240 V
- Operating temperature: -5 to 40 °C
- Storage temperature: -40 to 70 °C
- Number of mechanical operations: 10,000
- Dimensions (H x L x W): 115mm x 70mm x 18mm
- Weight: 0.5 kg
Key Features
- 1 Pole with Curve C for standard applications.
- Rated current of 6A and residual current of 30mA.
- High breaking capacity of 10kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- General: Any electrical installation requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- RoHS compliant, contributing to reduced environmental impact.
- Designed to improve energy efficiency and reduce carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager RCBO 1M 1P 10kA C-6A 30mA is available now for immediate purchase. Ideal for residential and commercial electrical installations.
