Trade Discount 22%

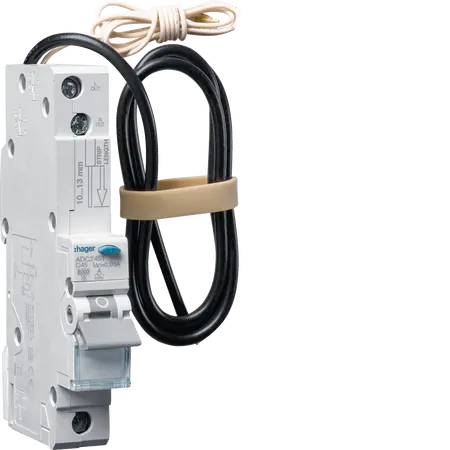

RCBO 1M 1P 6kA C-45A | 30mA A Class | IP20 Protection by Hager
RCBO with 45A rated current and 30mA residual current—ideal for residential and commercial circuit protection. Built for safety, with IP20 protection and compliance with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCBO 1M 1P 6kA C-45A 30mA A Class
Brand: Hager
SKU: ADC245T
Alternatively Known As: Residual Current Circuit Breaker, RCBO, Circuit Protection Device
Technical Specifications
- Rated current: 45 A
- Rated residual operating current: 30 mA
- Rated short-circuit breaking capacity: 6 kA
- Rated insulation voltage: 250 V
- Rated operational voltage: 230 - 240 V
- Operating temperature: -5 to 40 °C
- Storage temperature: -40 to 70 °C
- Number of mechanical operations: 10,000
- Dimensions (H x L x W): 115mm x 70mm x 18mm
- Weight: 0.5 kg
Key Features
- 1 Pole with Curve C for standard protection
- Rated current of 45A and residual current of 30mA
- Rated short-circuit breaking capacity of 6kA
- IP20 ingress protection rating
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- RoHS compliant, reducing hazardous substances in electrical equipment.
- Commitment to improving environmental performance and reducing carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager RCBO 1M 1P 6kA C-45A 30mA A Class is available now for immediate purchase. Ideal for residential and commercial applications requiring reliable circuit protection.
