Trade Discount 22%

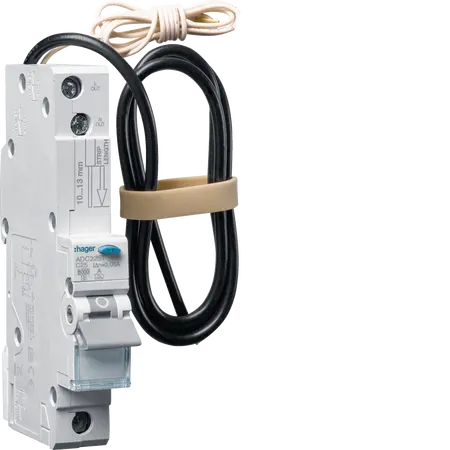

RCBO 1M 1P 6kA C-25A | 30mA A Class | IP20 Rated by Hager
RCBO 1M 1P with 6kA breaking capacity and 25A current—ideal for residential and commercial circuit protection. Built for safety, with 30mA residual current and IP20 rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCBO 1M 1P 6kA C-25A 30mA A Class
Brand: Hager
SKU: ADC225T
Alternatively Known As: Residual Current Circuit Breaker, RCBO, Circuit Protection Device
Technical Specifications
- Type of pole: 1P
- Rated current: 25 A
- Rated residual operating current: 30 mA
- Rated short-circuit breaking capacity: 6 kA
- Ingress Protection class: IP20
- Rated insulation voltage: 250 V
- Rated operational voltage: 230 - 240 V
- Operating temperature: -5 to 40 °C
- Storage temperature: -40 to 70 °C
- Number of mechanical operations: 10,000
- Dimensions (H x L x W): 115mm x 70mm x 18mm
- Weight: 0.5 kg
Key Features
- 1 Pole with Curve C for standard circuit protection.
- Rated current of 25A and residual current of 30mA.
- Rated short-circuit breaking capacity of 6kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- RoHS compliant, contributing to reduced environmental impact.
- Designed to improve energy efficiency and reduce carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager RCBO 1M 1P 6kA C-25A 30mA A Class is available now for immediate purchase. Ideal for residential and commercial applications requiring reliable circuit protection.
