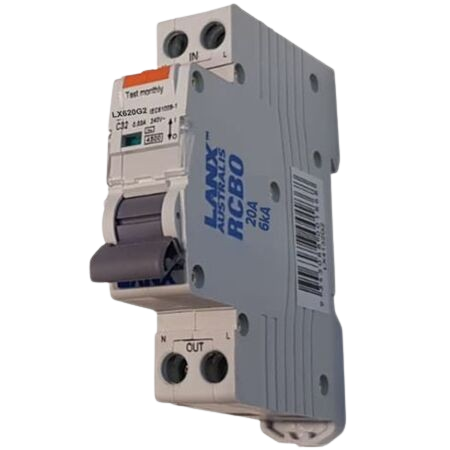

RCBO 1P 20A 6kA Breaking Capacity 30mA Sensitivity Type A LANX
A 20A single pole RCBO with 6kA breaking capacity and 30mA Type A detection for electrical circuit protection. Integrated RCBO/MCB functionality provides short circuit and overload protection with rapid-mount DIN rail installation. Suitable for residential circuit modifications, distribution boards, and industrial process control, with AS/NZS 3000 and AS/NZS 61009.1 certification. Review the technical specifications and professional installation requirements below before fitting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rating: 20A Single Pole Configuration
- Residual Current Protection: 30mA Type A Detection
- Breaking Capacity: 6kA Short Circuit Rating
- Degree of Protection: IP20
- Fastening Torque: 1.2N.m
- Terminal Connection Height: H1=19mm, H2=22mm
- Dimensions (H x L x W): 70mm x 80mm x 18mm
- Weight: 0.1 kg
Key Features
- Integrated RCD/MCB functionality
- Rapid-mount DIN rail installation
- Termination-optimized connection points
- Bi-directional cable termination capability
- High-visibility terminal identification
Professional Installation Requirements
- Licensed electrician installation required. Proper circuit protection and earthing needed. Follow all local electrical safety regulations.
Applications
- Residential: Circuit modifications, distribution boards
- Commercial: Electrical infrastructure, control systems
- Industrial: Process control, regulatory compliance
Standards & Compliance
- Certified to AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Certified to AS/NZS 61009.1
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and faults
- Supports energy-efficient electrical system protection
Warranty Information
Standard manufacturer warranty applies. Valid only with licensed electrician installation. Void if installed by non-licensed personnel. Installation certificate must be retained. Covers manufacturing defects and material faults.
Available Now
The Lanx 20A Single Pole RCBO is available now for immediate purchase. Ideal for residential, commercial, and industrial electrical protection applications.
FAQ
Q: What are the key specifications of this RCBO?
A: The RCBO has a 20A rated current, 30mA Type A detection, 6kA breaking capacity, and single pole configuration.
Q: What applications is this RCBO suitable for?
A: It is listed for residential circuit modifications, distribution boards, and industrial process control applications.
For a lower current option, the 16A RCBO provides single pole circuit protection with 6kA breaking capacity.
The 25A RCBO provides another single pole circuit protection option with 6kA breaking capacity.
For a lower-rated circuit protection option, the 10A RCBO is also available.
