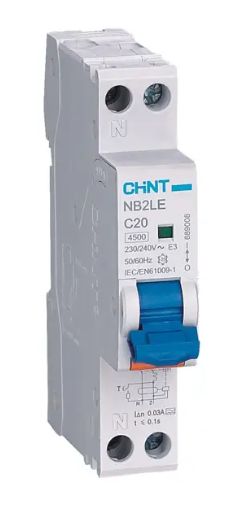

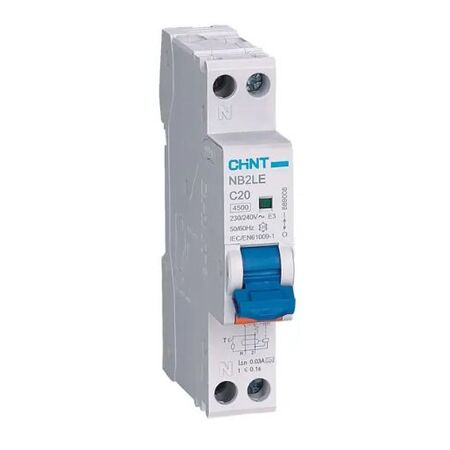

RCBO 1P+N 4.5kA 20A | 30mA Type A | Compact Design by Chint Global

BRAND: Zhejiang Chint Electrics
SKU: 266913
$24.60 List price: $26.50
+ −
30 Days Return Delivery Options
RCBO 1P+N with 4.5kA breaking capacity and 30mA residual current—ideal for industrial, commercial, and residential safety. Built for automatic power cut-off, with compact design for easy installation.

Product Name/Title: RCBO 1P+N 4.5ka 20a 30ma 2screw Type A

Brand: Chint Global

SKU: 266913

Alternatively Known As: Residual Current Circuit Breaker, RCD, RCBO, Circuit Breaker with RCD

Technical Specifications
  • Rated Voltage: 240V
  • Rated Current: 20A
  • Residual Current Rating: 30mA
  • Breaking Capacity: 4.5kA
  • Type: A
  • Number of Poles: 1P+N
  • Dimensions (H x L x W): 80mm x 70mm x 100mm
  • Weight: 0.5 kg
Key Features
  • Automatic power cut-off in case of electric shock or leakage current.
  • Suitable for AC 50/60Hz lines with a rated voltage of 240V.
  • Rated current up to 25A for overload and short circuit protection.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Suitable for industrial applications requiring residual current protection.
  • Commercial: Ideal for commercial buildings and high-rise structures.
  • Residential: Provides safety for residential houses.
Standards & Compliance
  • Complies with AS/NZS 61009 for residual current devices.
Environmental Benefits
  • Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The RCBO 1P+N 4.5ka 20a 30ma 2screw Type A is available now for immediate purchase. Ideal for industrial, commercial, and residential applications.

(NB2LE_.pdf, 146 Kb) [Download]

(NB2LE.pdf, 976 Kb) [Download]

(NB2LE_UA_TR_202403.pdf, 3,380 Kb) [Download]

(NB2LE_C40_KC_202006.pdf, 2,502 Kb) [Download]

(NB2LE_C32_KC_202006.pdf, 2,553 Kb) [Download]

(NB2LE_CE_declaration_202201.pdf, 867 Kb) [Download]

(NB2LE_UKCA_202109.pdf, 202 Kb) [Download]

(NB2LE_KEMA_202201.pdf, 2,439 Kb) [Download]

(NB2LE_CB_202203.pdf, 244 Kb) [Download]

(NB2LE_SEMKO_202108.pdf, 312 Kb) [Download]

(d6a13329-7dd6-46fb-9815-118031c27052.pdf, 152 Kb) [Download]

(a5829e48-a61b-40ef-a43b-36d30bf209c3.pdf, 119 Kb) [Download]

(NB2LE_C16_KC_220V_202006.pdf, 4,177 Kb) [Download]

(NB2LE_C16_KC_110V_202006.pdf, 2,579 Kb) [Download]

(NB2LE_EAC_202206.pdf, 607 Kb) [Download]

(NB2LE_1P_N剩余电流动作断路器三维模型202307.stp, 6,249 Kb) [Download]

(NB2LE_1P_N剩余电流动作断路器外形安装尺寸图202202.dwg, 71 Kb) [Download]

(NB2LE_1P_N剩余电流动作断路器外形安装尺寸图202202.dwg, 71 Kb) [Download]

(NB2LE_1P_N剩余电流动作断路器外形安装尺寸图202202.dwg, 71 Kb) [Download]
