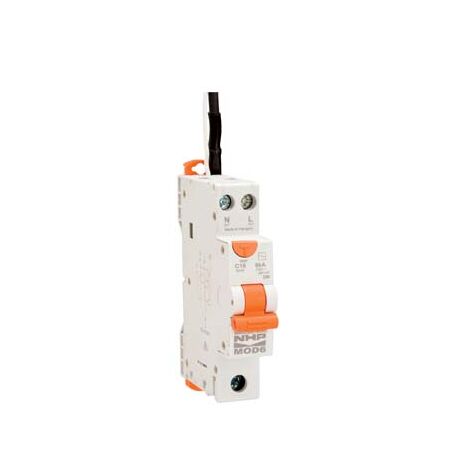

RCBO 1P+N 6KA 16A C Curve | 30MA Type AC | Compact Design
RCBO with 1P+N configuration, 6KA short circuit capacity, and 16A C Curve—ideal for load centers and panelboards. Built for safety and reliability, with compact design and 30MA Type AC protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCBO 1P+N 6KA 16A C Curve | 30MA Type AC | Compact Design
SKU: M6RCBS1630C
Alternatively Known As: RCBO 16A 30mA, Residual Current Breaker with Overcurrent, Miniature Circuit Breaker with RCD, 1P+N RCBO, Compact RCBO
Technical Specifications
- Rated Current (In): 16A
- Rated Residual Operating Current (IΔn): 30mA
- Rated Short Circuit Capacity (Icn): 6kA
- Trip Curve: C
- RCD Type: AC (AS/NZS 61008/61009 compliant)
- Rated Insulation Voltage (Ui): 500V
- Nominal Voltage (Un): 240V AC
- Service Voltage Range: 85V to 255V AC
- Mechanical Service Life: 20,000 operations
- Electrical Service Life at rated current: 10,000 operations
- IP Rating Inside: IP40, Outside: IP20
- Mounting: DIN Rail
- Wire Size Max Bottom (Rigid): 25 mm²
- Wire Size Max Top (Rigid): 16 mm²
- Operating Temperature Range: -5°C to 55°C
- Storage Temperature Range: -25°C to 70°C
- Relative Humidity Max: 95%
- Self Extinguish Degree: V-2 (UL94)
- Vibration Acceleration Max: 1.5g
- Tightening Torque Nominal Top and Bottom: 3 Nm
- Dimensions (H x L x W): 86mm x 76mm x 18mm
- Weight: 0.125 kg
Key Features
- 1 Pole + Neutral RCBO with 6kA short circuit capacity
- 16 Amp rated current with C curve trip characteristic
- 30mA Type AC residual current device for earth fault protection
- Compact design suitable for DIN rail mounting
- Fork type busbar system top and bottom
- Self-extinguishing degree V-2 (UL94)
- Wide operating temperature range from -5°C to 55°C
- High mechanical service life of 20,000 operations
- Electrical service life of 10,000 operations at rated current
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards and correct operation.
Applications
- Residential electrical distribution boards
- Commercial and industrial panelboards
- Loadcenters requiring circuit protection and residual current detection
Standards & Compliance
- AS/NZS 61009 – Residual Current Devices (RCDs) including RCBOs
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and shocks
- Compact design reduces material usage and waste
- Long service life reduces replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to NHP warranty terms for details.
Available Now
The NHP RCBO 1P+N 6KA 16A C Curve 30MA Type AC Compact is available for immediate purchase. Ideal for residential, commercial, and industrial electrical protection applications.
