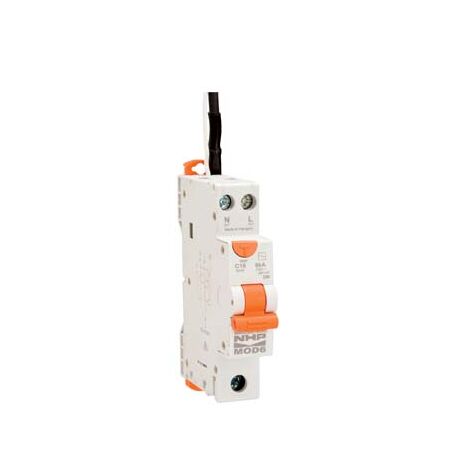

RCBO 1P+N 6KA 20A C Curve | 30MA Type AC | Compact Design
RCBO with 1P+N configuration, 6KA short circuit capacity, and 20A C curve—ideal for load centers and panelboards. Built for safety and reliability, with compact design and 30MA Type AC protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCBO 1P+N 6KA 20A C Curve | 30MA Type AC | Compact Design
SKU: M6RCBS2030C
Alternatively Known As: Residual Current Breaker with Overcurrent, RCBO 20A 30mA, Miniature Circuit Breaker with RCD, 1P+N RCBO
Technical Specifications
- Rated Current (In): 20A
- Rated Residual Operating Current (IΔn): 30mA
- Rated Short Circuit Capacity (Icn): 6kA
- Trip Curve: C
- RCD Type: AC (AS/NZS 61008/61009 compliant)
- Busbar System: Fork top and bottom
- Mounting: DIN Rail
- IP Rating Inside: IP40, Outside: IP20
- Electrical Service Life: 10,000 operations at rated current
- Mechanical Service Life: 20,000 operations
- Operating Temperature Range: -5°C to 55°C
- Storage Temperature Range: -25°C to 70°C
- Rated Insulation Voltage (Ui): 500V
- Nominal Voltage (Un): 240V AC
- Wire Size Max Bottom: 25 mm² rigid cable
- Wire Size Max Top: 16 mm² rigid cable
- Relative Humidity Max: 95%
- Self Extinguish Degree: V-2 (UL94)
- Vibration Acceleration Max: 1.5g
- Dimensions (H x L x W): 86mm x 76mm x 18mm
- Weight: 0.125 kg
Key Features
- 1 Pole + Neutral RCBO with 6kA short circuit capacity
- 30mA Type AC residual current device for earth fault protection
- C Curve trip characteristic suitable for general applications
- Compact design for space-saving installation
- DIN Rail mountable with fork busbar system top and bottom
- Self-extinguishing degree V-2 (UL94)
- Rated insulation voltage 500V and nominal voltage 240V AC
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical codes and standards to ensure safety and compliance.
Applications
- Residential electrical distribution boards
- Commercial panelboards and loadcenters
- Industrial electrical safety systems requiring RCBO protection
Standards & Compliance
- AS/NZS 61009 – Residual current operated circuit-breakers (RCCBs) including combined RCDs and MCBs (RCBOs)
Environmental Benefits
- Enhances electrical safety reducing risk of electrical fires and faults
- Compact design reduces material usage and waste
- Supports energy-efficient electrical system protection
Warranty Information
Standard manufacturer warranty applies. Please refer to NHP warranty terms for details.
Available Now
The NHP RCBO 1P+N 6KA 20A C Curve 30MA Type AC Compact is available for immediate purchase. Ideal for enhancing electrical safety in residential, commercial, and industrial electrical installations.
