RCBO 1P+N 6kA C-10A 30mA | High Breaking Capacity | Compact Design by Hager
RCBO with 1P+N configuration, 10A rated current, and 30mA residual current—ideal for residential and commercial circuit protection. Built for safety, with high 6kA breaking capacity and compact design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

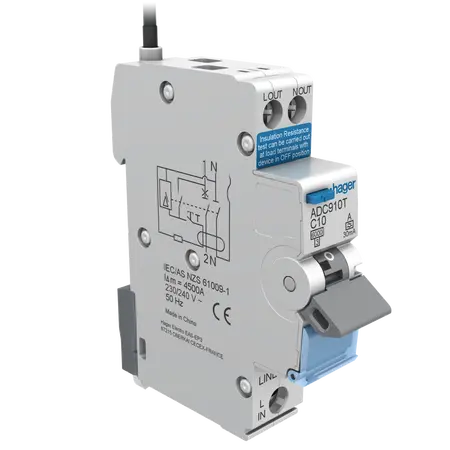

Product Name/Title: RCBO 1M 1P+N 6kA C-10A 30mA A
Brand: Hager
SKU: ADC910T
Alternatively Known As: Residual Current Circuit Breaker, RCBO, Circuit Protection Device
Technical Specifications
- Rated current: 10 A
- Rated residual operating current: 30 mA
- Rated short-circuit breaking capacity: 6 kA
- Rated insulation voltage: 440 V
- Operating temperature: -25 to 70 °C
- Endurance: 10,000 electrical operations, 20,000 mechanical operations
- Ingress Protection class: IP2X
- Dimensions (H x L x W): 85mm x 70mm x 18mm
- Weight: 0.5 kg
Key Features
- 1P+N configuration for single-phase applications.
- Rated current of 10 A with a residual current of 30 mA.
- High breaking capacity of 6 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- General: Any electrical installation requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- RoHS compliant, contributing to reduced environmental impact.
- Commitment to improving environmental performance by reducing carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager RCBO 1M 1P+N 6kA C-10A 30mA A is available now for immediate purchase. Ideal for residential and commercial electrical installations.
