Trade Discount 22%

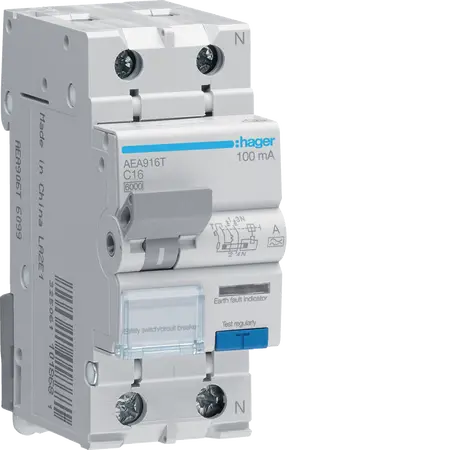

RCBO 1P+N 6kA C-16A | 100mA Residual Current | IP20 Rated by Hager
RCBO with 1P+N configuration, 16A current, and 100mA residual current—ideal for residential and commercial circuit protection. Built for safety, with 6kA breaking capacity and IP20 rating.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCBO 1P+N 6kA C-16A 100mA A
Brand: Hager
SKU: AEA916T
Alternatively Known As: Residual Current Circuit Breaker, RCBO, Circuit Protection Device
Technical Specifications
- Type of pole: 1P+N
- Curve: C
- Rated current: 16 A
- Rated residual operating current: 100 mA
- Rated short-circuit breaking capacity: 6 kA
- Ingress Protection (IP) class: IP20
- Rated insulation voltage: 500 V
- Operating temperature: -25 to 40 °C
- Number of mechanical operations: 4000
- Dimensions (H x L x W): 83mm x 68mm x 35mm
- Weight: 0.5 kg
Key Features
- 1P+N configuration for single-phase applications.
- Rated current of 16A with a residual current of 100mA.
- High breaking capacity of 6kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- General: Any electrical installation requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Designed to improve electrical safety and reduce the risk of electrical fires.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager RCBO 1P+N 6kA C-16A 100mA is available now for immediate purchase. Ideal for residential and commercial electrical installations.
