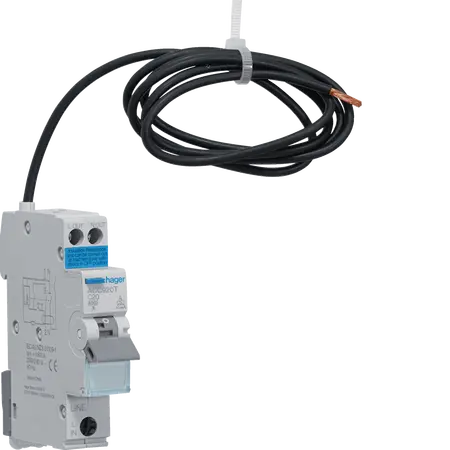

RCBO 1P+N 6kA C-20A | 10mA Residual Current | IP20 by Hager
RCBO with 1P+N configuration and 6kA breaking capacity—ideal for residential and commercial circuit protection. Built for safety with 20A rated current and 10mA residual current, ensuring reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCBO 1M 1P+N 6kA C-20A 10mA A
Brand: Hager
SKU: ACC920T
Alternatively Known As: Residual Current Circuit Breaker, RCBO, Circuit Protection Device
Technical Specifications
- Type of pole: 1P+N
- Curve: C
- Rated current: 20 A
- Rated residual operating current: 10 mA
- Rated short-circuit breaking capacity: 6 kA
- Rated insulation voltage: 440 V
- Operating temperature: -25 to 70 °C
- Endurance: 10,000 cycles
- Ingress Protection: IP20
- Dimensions (H x L x W): 85mm x 70mm x 18mm
- Weight: 0.5 kg
Key Features
- 1P+N configuration for effective circuit protection.
- Rated current of 20 A with a residual current of 10 mA.
- High breaking capacity of 6 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- General: Any electrical installation requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- RoHS compliant, contributing to reduced environmental impact.
- Commitment to improving environmental performance by reducing carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager RCBO 1M 1P+N 6kA C-20A 10mA A is available now for immediate purchase. Ideal for residential and commercial electrical installations.
