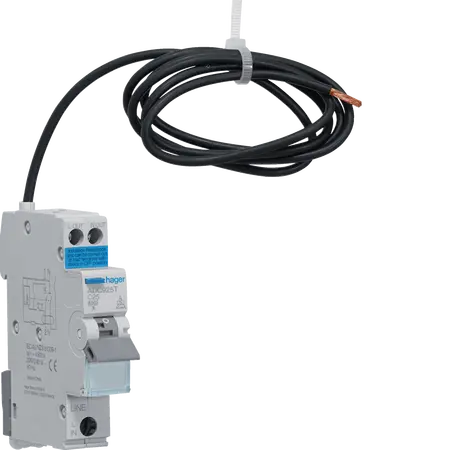

RCBO 1P+N 6kA C-25A | 30mA Residual Current | DIN Rail by Hager

BRAND: :hager
SKU: ADC925T
$46.30 List price: $59.30
+
RCBO with 1P+N configuration and 6kA breaking capacity—ideal for residential and commercial circuit protection. Built for safety, with 25A rated current and 30mA residual current, suitable for DIN rail installation.

Product Name/Title: RCBO 1M 1P+N 6kA C-25A 30mA A

Brand: Hager

SKU: ADC925T

Alternatively Known As: Residual Current Circuit Breaker, RCBO, Circuit Protection Device

Technical Specifications
  • Type of pole: 1P+N
  • Curve: C
  • Rated current: 25 A
  • Rated residual operating current: 30 mA
  • Rated short-circuit breaking capacity: 6 kA
  • Rated insulation voltage: 440 V
  • Rated operational voltage: 230 - 240 V
  • Operating temperature: -25 - 70 °C
  • Endurance: 10,000 electric operations, 20,000 mechanical operations
  • Suitable for DIN Rail installation
  • Dimensions (H x L x W): 85mm x 70mm x 18mm
  • Weight: 0.5 kg
Key Features
  • 1P+N configuration for single-phase applications.
  • Rated current of 25A with a residual current of 30mA.
  • High breaking capacity of 6kA.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Offices and retail spaces
  • General: Any electrical installation requiring circuit protection
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • RoHS compliant, contributing to reduced environmental impact.
  • Designed to improve energy efficiency and reduce carbon footprint.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Hager RCBO 1M 1P+N 6kA C-25A 30mA A is available now for immediate purchase. Ideal for residential and commercial electrical installations.

ADC925T (ADC925T, 143 Kb) [Download]

(PEP_HAGE-01255-V01.01-EN.pdf, 2,296 Kb) [Download]

reach_declaration_ADC925T.pdf (reach_declaration_ADC925T.pdf, 103 Kb) [Download]

rohs_declaration_ADC925T.pdf (rohs_declaration_ADC925T.pdf, 104 Kb) [Download]

(ID1_DD_RCBO_6LE007054AD.pdf, 1,264 Kb) [Download]

(ONEKONEKT_BROCHURE.pdf, 2,527 Kb) [Download]

(SAFE_AND_SIMPLE_FOR_ALL_APPLICATIONS.pdf, 7,129 Kb) [Download]

(DECLARATION_20_2595_01_20.pdf, 107 Kb) [Download]
