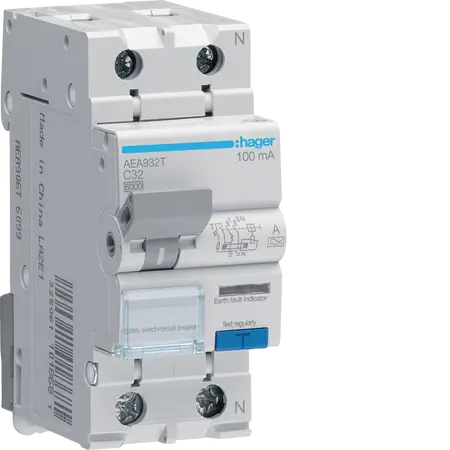

RCBO 1P+N 6kA C-32A | 100mA Residual Current | IP20 Rated by Hager
RCBO with 1P+N configuration and 6kA breaking capacity—ideal for residential and commercial circuit protection. Built for safety, with 32A rated current and 100mA residual current.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCBO 1P+N 6kA C-32A 100mA A
Brand: Hager
SKU: AEA932T
Alternatively Known As: Residual Current Circuit Breaker, RCBO, Circuit Protection Device
Technical Specifications
- Type of pole: 1P+N
- Curve: C
- Rated current: 32 A
- Rated residual operating current: 100 mA
- Rated short-circuit breaking capacity: 6 kA
- Ingress Protection (IP) class: IP20
- Rated insulation voltage: 500 V
- Operating temperature: -25 to 40 °C
- Number of modules: 2
- Dimensions (H x L x W): 83mm x 68mm x 35mm
- Weight: 0.5 kg
Key Features
- 1P+N configuration for single-phase circuits.
- Rated current of 32A with a residual current of 100mA.
- High breaking capacity of 6kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Designed to improve electrical safety and reduce the risk of electrical fires.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager RCBO 1P+N 6kA C-32A 100mA is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
