Trade Discount 22%

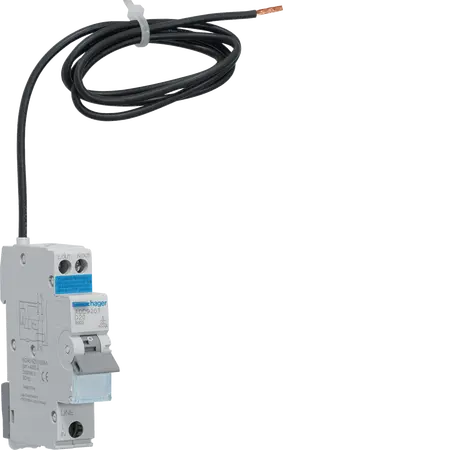

RCBO 1P+N 6kA D-20A | 30mA Residual Current | IP20 Rated by Hager
RCBO with 1P+N configuration and 6kA breaking capacity—ideal for residential and commercial circuit protection. Built for safety with 20A current and 30mA residual current, ensuring reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCBO 1M 1P+N 6kA D-20A 30mA A
Brand: Hager
SKU: ADD920T
Alternatively Known As: Residual Current Circuit Breaker, RCBO, Circuit Protection Device
Technical Specifications
- Type of pole: 1P+N
- Curve: D
- Rated current: 20 A
- Rated residual operating current: 30 mA
- Rated short-circuit breaking capacity: 6 kA
- Ingress Protection class: IP20
- Rated insulation voltage: 440 V
- Operating temperature: -25 to 70 °C
- Endurance: 10,000 electric cycles, 20,000 mechanical operations
- Dimensions (H x L x W): 85mm x 70mm x 18mm
- Weight: 0.5 kg
Key Features
- 1P+N configuration for single-phase circuits.
- Rated current of 20 A with a residual current of 30 mA.
- High breaking capacity of 6 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- RoHS compliant, reducing hazardous substances in electrical equipment.
- Commitment to improving environmental performance and reducing carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager RCBO 1M 1P+N 6kA D-20A 30mA A is available now for immediate purchase. Ideal for residential and commercial applications requiring reliable circuit protection.
