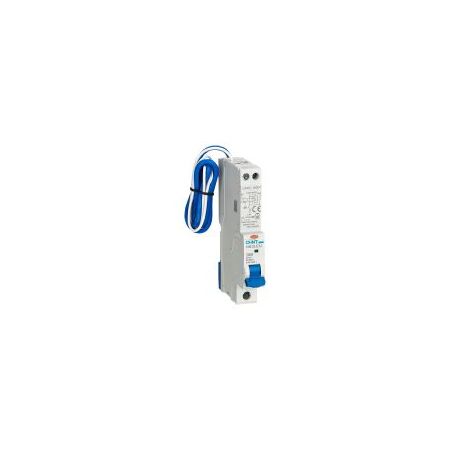

RCBO 1P+N 10A C Curve 30mA Type A 10kA NB3LEU Chint

BRAND: CABAC
SKU: 208037
$68.10 List price: $90.90
+ −
30 Days Return Electricians Unlock Trade Access
Chint NB3LEU RCBO 1P+N C10 features 30mA Type A earth leakage protection, 10kA breaking capacity, and C curve to IEC/EN 61009-1. Ideal for final subcircuits.

Alternatively Known As: CHINT NB3LEU C10 RCBO, 10A Type A Safety Switch, 1P+N Residual Current Circuit Breaker with Overcurrent Protection

Technical Specifications
  • Device Type: Residual current operated circuit-breaker with overcurrent protection
  • Rated Current: 10A
  • Number of Poles: 1P+N
  • Rated Voltage: 230/240V AC
  • Rated Frequency: 50/60Hz
  • Tripping Curve: C curve
  • Residual Current Type: Type A
  • Rated Residual Operating Current: 30mA
  • Rated Short-Circuit Capacity: 10kA
  • Rated Residual Making and Breaking Capacity: 500A
  • Maximum Residual-Current Break Time: Less than 0.1 seconds
  • Impulse Withstand Voltage: 4kV
  • Insulation Voltage: 500V
  • Protection Degree: IP20
  • Terminal Capacity: Up to 16mm² cable
  • Terminal Tightening Torque: 2N·m
  • Mounting: 35mm DIN rail to EN 60715
  • Connection: Bottom connection
  • Dimensions (H x L x W): 115mm x 77mm x 18mm
  • Weight: 0.2 kg
Key Features
  • Combines overload, short-circuit and earth leakage protection in a single modular device
  • Type A residual-current detection for AC and pulsating DC residual currents
  • C-curve thermal-magnetic overcurrent protection for final subcircuits and moderate inrush loads
  • 1P+N configuration switches the active and neutral conductors
  • 10kA short-circuit breaking capacity
  • Compact 18mm-wide DIN-rail format
  • Suitable for residential, commercial and light industrial distribution boards
Professional Installation Requirements
  • Installation, testing and maintenance must be performed by a licensed electrician in accordance with applicable electrical regulations and AS/NZS 3000. Isolate the supply before installation or servicing.
Applications
  • Final subcircuits in residential distribution boards
  • Lighting and general-purpose socket-outlet circuits
  • Commercial electrical distribution boards
  • Small HVAC, control and appliance circuits requiring Type A residual-current protection
  • Replacement or upgrade of compatible 1P+N RCBO protection devices
Standards & Compliance
  • AS/NZS 61009.1 for residual current operated circuit-breakers with integral overcurrent protection
  • IEC/EN 61009-1
  • Suitable installation and circuit application must comply with AS/NZS 3000
Environmental Benefits
  • RoHS documentation is available for the NB3LEU product series, supporting restriction of hazardous substances in electrical equipment
  • Combines circuit-breaker and residual-current protection in one device, reducing component count and switchboard space
  • Provides early disconnection during leakage faults, helping reduce the risk of electrical damage and fire-related equipment waste
Warranty Information

CHINT warranty policy provides 27 months from the date of manufacture for other low-voltage apparatus sold through authorised sales channels, subject to applicable contract terms and conditions.

Available Now

Available through authorised CHINT distributors in Australia.
