Trade Discount 22%

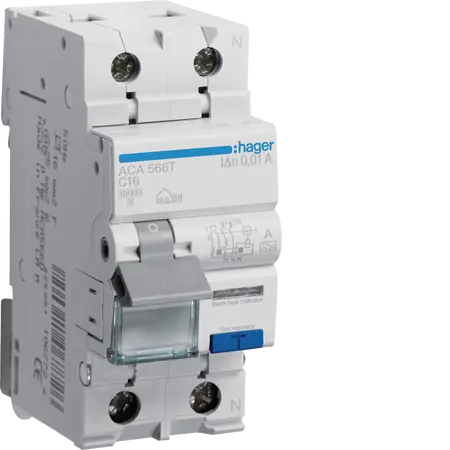

RCBO 1P+N 10kA C-10A | 30mA A Class | IP20 Indoor Use by Hager
RCBO 1P+N with 10kA short-circuit capacity and 30mA residual current—ideal for residential and commercial circuit protection. Built for safety, with IP20 rating for indoor use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCBO 1P+N 10kA C-10A 30mA A Class
Brand: Hager
SKU: ADA560T
Alternatively Known As: Residual Current Circuit Breaker, RCBO, Circuit Protection Device
Technical Specifications
- Rated short-circuit breaking capacity: 10 kA
- Rated operational voltage: 230 - 240 V
- Rated current: 10 A
- Rated residual operating current: 30 mA
- Operating temperature range: -25 to 40 °C
- Dielectric strength: 2 kV
- Number of modules: 2
- Dimensions (H x L x W): 83mm x 68mm x 35mm
- Weight: 0.5 kg
Key Features
- 1P+N configuration for single-phase applications.
- 10kA short-circuit breaking capacity.
- 30mA residual current for enhanced safety.
- IP20 ingress protection for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- General: Any electrical installation requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- RoHS compliant, reducing hazardous substances in electrical equipment.
- Commitment to improving environmental performance and reducing carbon footprint.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager RCBO 1P+N 10kA C-10A 30mA A Class is available now for immediate purchase. Ideal for residential and commercial electrical installations.
