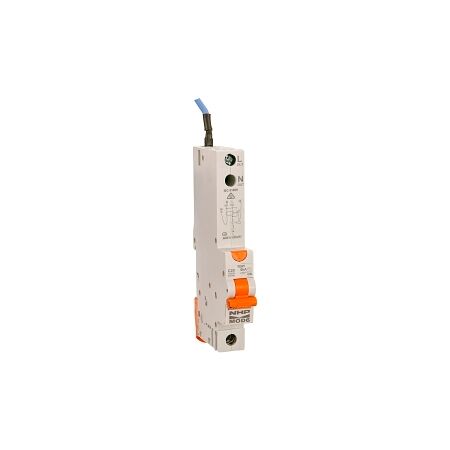

RCBO 1P+N 16A 6kA Breaking Capacity 30mA Type A C Curve MOD6 NHP

BRAND: NHP
SKU: MOD6RCBO11630AL
$54.30 List price: $67.70
+ −
30 Days Return Electricians Unlock Trade Access
NHP MOD6 1-pole + neutral 16A RCBO features 6kA breaking capacity, 30mA Type A residual protection and C-curve tripping. Ideal for final subcircuit protection.
Technical Specifications
  • Rated Voltage: 240 V
  • Frequency: 50/60 Hz
  • Trip Curve: C
  • Rated Impulse Withstand Voltage: 6 kV
  • Tripping Time: 40 ms
  • Electrical Life: 10,000 cycles
  • Mechanical Life: 20,000 cycles
  • Degree of Protection: IP20
  • Operating Temperature: -5 to 55 °C
  • Dimensions (H x L x W): 125mm x 76mm x 18mm
  • Weight: 0.23 kg
Key Features
  • Long body design with pigtail for easy installation.
  • Rated current of 16A and leakage current of 30mA.
  • 6kA short circuit breaking capacity.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, and small buildings
  • Commercial: Offices and retail spaces
  • Industrial: Light industrial applications requiring electrical safety
Standards & Compliance
  • Complies with AS/NZS 61009 for residual current devices.
Environmental Benefits
  • Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information

Standard warranty as per manufacturer’s policy.

Available Now

The NHP MOD6 Residual Current Device is available now for immediate purchase. Ideal for residential and commercial applications requiring electrical safety.

Non-Returnable & Non-Cancellable

MOD6RCBO11630AL-AU-RCBO-6kA-1P-18mm-Long-body-with-Pigtail-Datasheet.pdf (MOD6RCBO11630AL-AU-RCBO-6kA-1P-18mm-Long-body-with-Pigtail-Datasheet.pdf, 408 Kb) [Download]
