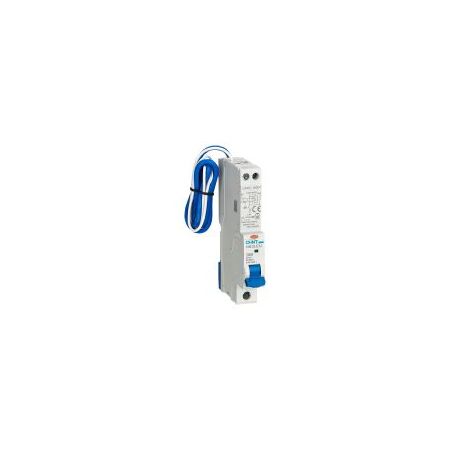

RCBO 1P+N 16A C Curve 30mA Type A 10kA NB3LEU Chint

BRAND: CABAC
SKU: 208039.1
$68.10 List price: $90.90
+ −
30 Days Return Electricians Unlock Trade Access
Chint NB3LEU RCBO 1P+N C16 features 30mA Type A earth leakage protection, 10kA breaking capacity, and C curve to IEC/EN 61009-1. Ideal for final subcircuits.

Alternatively Known As: 1P+N RCBO, Residual Current Circuit Breaker with Overcurrent Protection, Safety Switch with Overload Protection

Technical Specifications
  • Rated Current: 16 A
  • Configuration: 1P+N
  • Trip Curve: C curve
  • Residual Current Type: Type A
  • Rated Residual Operating Current: 30 mA
  • Rated Voltage: 230/240 V AC
  • Rated Frequency: 50/60 Hz
  • Short-Circuit Capacity: 10 kA
  • Operating Short-Circuit Capacity: 7.5 kA
  • Residual Making and Breaking Capacity: 3 kA
  • Protection Degree: IP20
  • Terminal Capacity: Up to 16 mm² cable
  • Terminal Tightening Torque: 2 N·m
  • Mounting: 35 mm DIN rail with quick-clip device
  • Connection: Bottom connection
  • Mechanical Life: 2,000 operations
  • Electrical Life: 2,000 operations
  • Dimensions (H x L x W): 110mm x 76.5mm x 18mm
  • Weight: 0.22 kg
Key Features
  • Combines overload, short-circuit and earth leakage protection in one device
  • Type A residual current detection for AC and pulsating DC leakage currents
  • C-curve thermal-magnetic protection for final subcircuits and moderate inrush loads
  • 1P+N configuration switches phase and neutral within a single modular device
  • 10 kA rated short-circuit capacity
  • 30 mA residual current protection for additional protection against electric shock
  • Compact one-module DIN rail design
  • Front-mounted test function and contact position indication
Professional Installation Requirements
  • Installation, testing and commissioning must be performed by a licensed electrician in accordance with AS/NZS 3000, the manufacturer's instructions and applicable local electrical regulations.
Applications
  • Residential final subcircuits
  • Commercial lighting and socket-outlet circuits
  • Single-phase distribution boards
  • Protection of general-purpose power circuits
  • Overload, short-circuit and residual current protection in household and similar installations
Standards & Compliance
  • AS/NZS 61009.1:2015 for residual current operated circuit-breakers with integral overcurrent protection
  • AS/NZS 3000 for installation within electrical installations
Environmental Benefits
  • Integrated protection reduces the need for separate protective devices and associated materials
  • Reusable DIN rail design supports serviceability and component replacement
  • RoHS 2.0 compliant construction restricts specified hazardous substances
  • Extended service life helps reduce replacement frequency and electrical equipment waste
Warranty Information

18-month quality guarantee from the date of manufacture, subject to CHINT warranty terms and authorised supply conditions.

Available Now

Available through authorised CHINT distributors in Australia.
