RCBO 1P+N 25A 30mA 6kA | A Type C Curve | Compact Design by Legrand
RCBO with 25A rating and 30mA tripping current—ideal for residential and commercial applications. Built for enhanced protection, combining MCB and RCD functionality in a compact design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

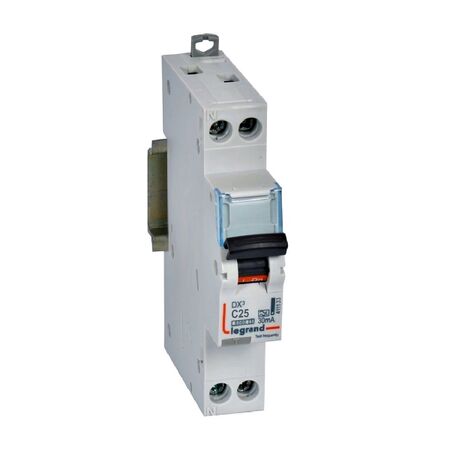

Product Name/Title: DX3 RCBO 1P+N 25A 30mA 6kA (MCB/RCD combo) - A Type - C Curve
Brand: Legrand
SKU: 411133
Alternatively Known As: RCBO, MCB/RCD combo, Earth Leakage Circuit Breaker
Technical Specifications
- Rating: 25A
- Tripping current: 30mA
- Short-circuit current rating: 6kA
- Type: A
- Curve: C
- Number of poles: 2
- Dimensions (H x L x W): 80mm x 100mm x 75mm
- Weight: 1.2 kg
Key Features
- Combines circuit breaker and RCD functionality in one device for enhanced protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Any electrical applications requiring protection against overcurrent and earth faults
Standards & Compliance
- Complies with AS/NZS 61009 for RCD and AS/NZS 60898 for circuit breakers.
Environmental Benefits
- Energy-efficient design reduces electrical hazards and potential wastage.
Warranty Information
3 years warranty against manufacturing defects.
Available Now
The DX3 RCBO 1P+N 25A 30mA 6kA is available now for immediate purchase. Ideal for protecting residential and commercial electrical systems.
