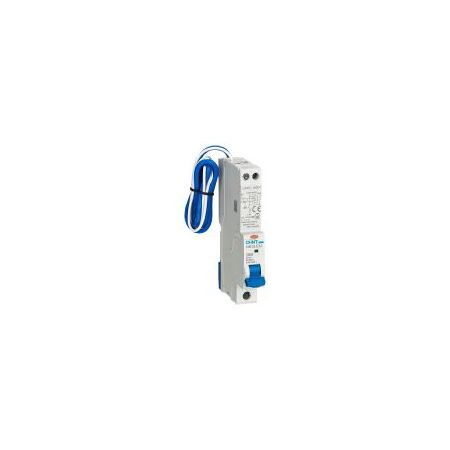

RCBO 1P+N 32A C Curve 30mA Type A 10kA NB3LEU Chint

BRAND: CABAC
SKU: 208042.1
$68.10 List price: $90.90
+ −
30 Days Return Electricians Unlock Trade Access
Chint NB3LEU RCBO 1P+N C32 features 30mA Type A earth leakage protection, 10kA breaking capacity, and C curve to IEC/EN 61009-1. Ideal for final subcircuits.

Alternatively Known As: CHINT NB3LEU-C32 RCBO, single-pole plus neutral RCBO, residual current circuit breaker with overcurrent protection

Technical Specifications
  • Rated Current: 32A
  • Pole Configuration: 1P+N
  • Tripping Curve: C curve
  • Residual Current Type: Type A
  • Rated Residual Current: 30mA
  • Rated Voltage: 240V AC
  • Rated Frequency: 50/60Hz
  • Short-Circuit Capacity: 10kA Icn; 7.5kA Ics
  • Residual Making and Breaking Capacity: 500A
  • Maximum Break Time at Rated Residual Current: Less than 0.1 seconds
  • Insulation Voltage: 500V
  • Impulse Withstand Voltage: 4kV
  • Protection Degree: IP20
  • Terminal Capacity: Up to 16mm² cable
  • Terminal Tightening Torque: 2N·m
  • Mounting: 35mm DIN rail to EN 60715
  • Connection: Bottom connection
  • Electrical Life: 2,000 operations
  • Mechanical Life: 2,000 operations
  • Dimensions (H x L x W): 119mm x 77mm x 18mm
  • Weight: 0.2 kg
Key Features
  • Combines overload, short-circuit and residual current protection in one device
  • Type A earth leakage detection responds to sinusoidal AC and pulsating DC residual currents
  • C curve provides protection for circuits with moderate inrush currents
  • 10kA rated short-circuit breaking capacity
  • Compact one-module 1P+N design
  • Fast clip-on mounting for 35mm DIN rail installation
  • Suitable for cable, U-type busbar and pin-type busbar connections
  • Front test button for residual current function testing
Professional Installation Requirements
  • Installation, testing and maintenance must be carried out by a licensed electrician or suitably qualified electrical professional, with the supply isolated during work and the installation completed in accordance with AS/NZS 3000 and applicable local requirements.
Applications
  • Final subcircuits in residential switchboards
  • Commercial electrical distribution boards
  • Light industrial electrical installations
  • Lighting circuits with moderate inrush current
  • Socket-outlet and general power circuits
  • Circuits supplying electronic equipment requiring Type A residual current protection
Standards & Compliance
  • AS/NZS 61009.1:2015 for residual current operated circuit-breakers with integral overcurrent protection
  • AS/NZS 3000:2018 for selection, installation and verification within Australian and New Zealand electrical installations
Environmental Benefits
  • RoHS-compliant construction helps restrict the use of hazardous substances
  • Integrated protection can reduce equipment damage and premature replacement following electrical faults
  • Durable DIN-mounted construction supports a long service life and reduces replacement waste
Warranty Information

CHINT warranty policy provides 27 months from the date of manufacture for other low-voltage apparatus sold through authorised sales channels, subject to contract terms and exclusions.

Available Now

Available through authorised CHINT distributors in Australia.
