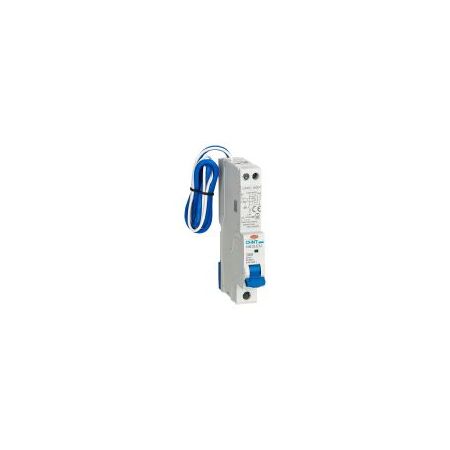

RCBO 1P+N 45A C Curve 30mA Type A 10kA NB3LEU Chint

BRAND: CABAC
SKU: 256584
$70.30 List price: $93.80
+ −
30 Days Return Electricians Unlock Trade Access
Chint NB3LEU RCBO 1P+N C45 features 30mA Type A earth leakage protection, 10kA breaking capacity, and C curve to IEC/EN 61009-1. Ideal for final subcircuits.

Alternatively Known As: CHINT NB3LEU C45 RCBO, 45A Type A RCBO, 1P+N residual current circuit breaker with overcurrent protection

Technical Specifications
  • Rated Current: 45A
  • Poles: 1P+N
  • Rated Voltage: 230/240V AC
  • Rated Frequency: 50/60Hz
  • Residual Current Sensitivity: 30mA
  • Earth Leakage Type: Type A
  • Tripping Curve: C curve, 5–10 times rated current
  • Short-Circuit Capacity: 10kA Icn; 7.5kA Ics
  • Residual Making and Breaking Capacity: 3kA
  • Maximum Residual Current Break Time: 0.1 seconds
  • Impulse Withstand Voltage: 4kV
  • Insulation Voltage: 500V
  • Protection Degree: IP20
  • Terminal Capacity: Up to 16mm² cable
  • Tightening Torque: 2N·m
  • Mounting: 35mm DIN rail
  • Electrical Endurance: 2,000 operations
  • Mechanical Endurance: 2,000 operations
  • Dimensions (H x L x W): 115mm x 77mm x 45mm
  • Weight: 0.2 kg
Key Features
  • Combines overload, short-circuit and earth leakage protection in one device
  • Type A residual current detection responds to sinusoidal AC and pulsating DC residual currents
  • C curve suits resistive and inductive loads with moderate inrush current
  • 1P+N configuration for single-phase final subcircuits
  • 10kA rated short-circuit breaking capacity
  • Contact position indicator for visual status confirmation
  • Compatible with cable, U-type busbar and pin-type busbar connections
  • Compact DIN rail mounting format
Professional Installation Requirements
  • Installation, testing and maintenance must be performed by a licensed electrician in accordance with AS/NZS 3000, the manufacturer's instructions and applicable local electrical regulations.
Applications
  • Residential final subcircuits
  • Commercial and light industrial distribution boards
  • Protection of power, lighting and equipment circuits
  • Single-phase circuits requiring combined overcurrent and 30mA residual current protection
Standards & Compliance
  • AS/NZS 61009.1:2015 for residual current operated circuit-breakers with integral overcurrent protection
  • SAA approval and RCM certification for the NB3LEU product series
Environmental Benefits
  • RoHS declaration supports reduced use of restricted hazardous substances
  • Energy Limiting Class 3 construction can reduce let-through fault energy and associated equipment damage
  • Reusable DIN rail design supports servicing and component replacement rather than complete board replacement
  • Long electrical and mechanical endurance can reduce replacement frequency and product waste
Warranty Information

CHINT warranty policy specifies 27 months from the date of manufacture for other low-voltage apparatus sold through authorised channels, subject to the applicable sales contract and warranty conditions.

Available Now

Available through authorised CHINT distributors in Australia.
