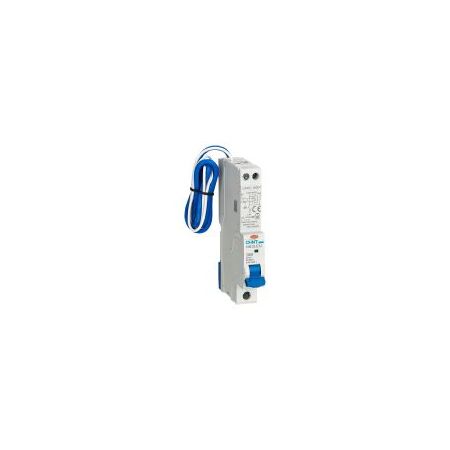

RCBO 1P+N 50A C Curve 30mA Type A 10kA NB3LEU Chint

BRAND: CABAC
SKU: 256585
$70.30 List price: $93.80
+ −
30 Days Return Electricians Unlock Trade Access
Chint NB3LEU RCBO 1P+N C50 features 30mA Type A earth leakage protection, 10kA breaking capacity, and C curve to IEC/EN 61009-1. Ideal for final subcircuits.

Alternatively Known As: Type A RCBO, residual current circuit breaker with overcurrent protection, 1P+N safety switch

Technical Specifications
  • Device Type: Residual current circuit breaker with integral overcurrent protection
  • Configuration: 1P+N
  • Rated Current: 50A
  • Rated Voltage: AC 240V
  • Rated Frequency: 50/60Hz
  • Tripping Curve: C curve, 5–10 times rated current
  • Residual Current Protection: 30mA Type A
  • Rated Short-Circuit Capacity: 10kA
  • Rated Residual Making and Breaking Capacity: 500A
  • Maximum Break Time at Rated Residual Current: ≤0.1 seconds
  • Terminal Capacity: Up to 16mm² cable
  • Terminal Tightening Torque: 2N·m
  • Protection Degree: IP20
  • Mounting: 35mm EN 60715 DIN rail
  • Electrical Life: 2,000 operations
  • Mechanical Life: 2,000 operations
  • Dimensions (H x L x W): 115mm x 45mm x 18mm
  • Weight: 0.2 kg
Key Features
  • Combines overload, short-circuit and earth leakage protection in one device
  • Type A residual-current sensing responds to alternating and pulsating direct residual currents
  • C curve suits resistive and inductive loads with low inrush current
  • 10kA short-circuit breaking capacity for final subcircuit protection
  • 1P+N design in a single modular-width device
  • DIN rail mounting with fast-clip installation
  • Contact position indication for easier circuit status identification
Professional Installation Requirements
  • Installation, testing and commissioning must be carried out by a licensed electrician in accordance with AS/NZS 3000 and applicable local electrical regulations. The device rating must be matched to the circuit design and prospective fault current.
Applications
  • Residential final subcircuits
  • Commercial lighting and power circuits
  • Distribution boards and consumer units
  • HVAC and refrigeration auxiliary circuits
  • Resistive and inductive loads with low inrush current
  • Single-phase circuits requiring combined overcurrent and residual-current protection
Standards & Compliance
  • AS/NZS 61009.1:2015 for residual current operated circuit-breakers with integral overcurrent protection
Environmental Benefits
  • Combines circuit-breaker and residual-current protection in one device, potentially reducing switchboard space and material use compared with separate protective devices
  • Durable DIN rail-mounted construction can reduce replacement frequency and electrical equipment waste
  • Efficient fault protection can help limit damage to connected wiring and equipment
Warranty Information

CHINT warranty policy provides 27 months from the date of manufacture for other low-voltage apparatus, subject to authorised sales channels, contract terms and exclusions for incorrect installation, misuse or unauthorised modification.

Available Now

Available through authorised CHINT distributors in Australia.
