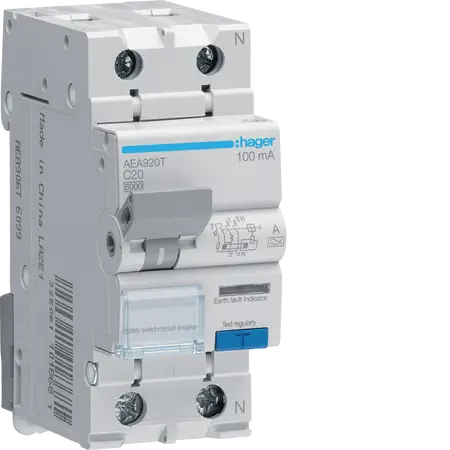

RCBO 1P+N 6kA C-20A | 100mA Residual Current | IP20 Rated by Hager
RCBO 1P+N with 6kA breaking capacity and 100mA residual current—ideal for residential and commercial circuit protection. Built for safety, with IP20 rating and professional installation recommended.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCBO 1P+N 6kA C-20A 100mA A
Brand: Hager
SKU: AEA920T
Alternatively Known As: Residual Current Circuit Breaker, RCBO, Circuit Protection Device
Technical Specifications
- Rated current: 20 A
- Rated residual operating current: 100 mA
- Rated short-circuit breaking capacity: 6 kA
- Rated insulation voltage: 500 V
- Operating temperature: -25 to 40 °C
- Number of modules: 2
- Type of connection: Screw terminal
- Dimensions (H x L x W): 83mm x 68mm x 35mm
- Weight: 0.5 kg
Key Features
- 1P+N configuration for single-phase applications.
- Rated current of 20A with a residual current of 100mA.
- High breaking capacity of 6kA for enhanced safety.
- IP20 ingress protection rating.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Designed to improve electrical safety and reduce the risk of electrical fires.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager RCBO 1P+N 6kA C-20A 100mA is available now for immediate purchase. Ideal for residential and commercial applications requiring reliable circuit protection.
