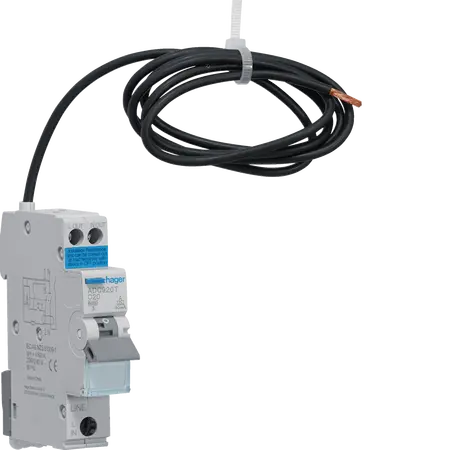

RCBO 1P+N 6kA C-20A | 30mA Residual Current | DIN Rail by Hager
RCBO with 1P+N configuration and 6kA breaking capacity—ideal for residential and commercial circuit protection. Built for safety, with 20A rated current and 30mA residual current, suitable for DIN rail installation.
Sign in
Please login to continue to your account.
Product Name/Title: RCBO 1M 1P+N 6kA C-20A 30mA A
Brand: Hager
SKU: ADC920T
Alternatively Known As: Residual Current Circuit Breaker, RCBO, Circuit Protection Device
- Type of pole: 1P+N
- Curve: C
- Rated current: 20 A
- Rated residual operating current: 30 mA
- Rated short-circuit breaking capacity: 6 kA
- Rated insulation voltage: 440 V
- Operating temperature: -25 to 70 °C
- Endurance: 10,000 electric cycles, 20,000 mechanical operations
- Suitable for DIN Rail installation
- Dimensions (H x L x W): 85mm x 70mm x 18mm
- Weight: 0.5 kg
- 1P+N configuration for single-phase applications.
- Rated current of 20A with a residual current of 30mA.
- High breaking capacity of 6kA.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- General: Any electrical installation requiring circuit protection
- Complies with AS/NZS 3000 for electrical installations.
- RoHS compliant, contributing to reduced environmental impact.
- Designed to improve energy efficiency and reduce carbon footprint.
2 years warranty against manufacturing defects.
The Hager RCBO 1M 1P+N 6kA C-20A 30mA A is available now for immediate purchase. Ideal for residential and commercial electrical installations.
