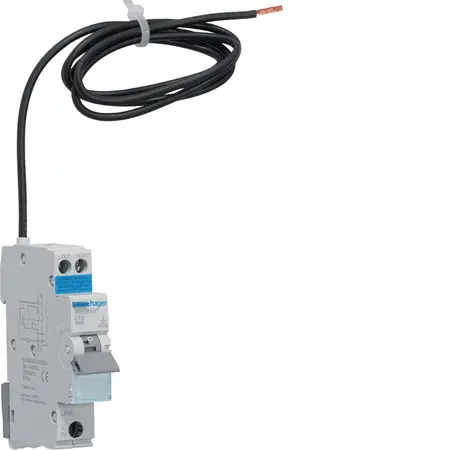

RCBO 1P+N 6kA D-10A | 30mA Residual Current | IP20 Rated by Hager
RCBO with 1P+N configuration and 6kA breaking capacity—ideal for residential and commercial electrical safety. Built for effective circuit protection, with 10A rated current and 30mA residual current.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: RCBO 1M 1P+N 6kA D-10A 30mA A
Brand: Hager
SKU: ADD910T
Alternatively Known As: Residual Current Circuit Breaker, RCBO, Circuit Protection Device
Technical Specifications
- Rated current: 10 A
- Rated residual operating current: 30 mA
- Rated short-circuit breaking capacity: 6 kA
- Ingress Protection class: IP20
- Operating temperature: -25 to 70 °C
- Endurance: 10,000 electric cycles, 20,000 mechanical operations
- Dimensions (H x L x W): 85mm x 70mm x 18mm
- Weight: 0.5 kg
Key Features
- 1P+N configuration for effective circuit protection.
- Rated current of 10 A with a residual current of 30 mA.
- High breaking capacity of 6 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, offices
- Commercial: Retail, hospitality, workspaces
- General: Electrical safety in various installations
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- RoHS compliant, contributing to reduced environmental impact.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Hager RCBO 1M 1P+N 6kA D-10A 30mA A is available now for immediate purchase. Ideal for residential and commercial electrical safety applications.
