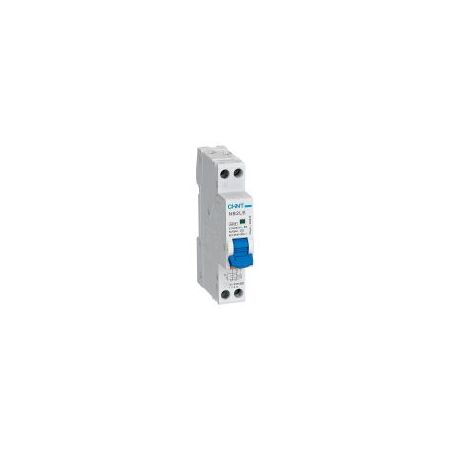

RCBO 1P+N C Curve 10A 30mA Type A 6kA NB2LE Chint

BRAND: CABAC
SKU: 689006
$51.40 List price: $68.50
+ −
30 Days Return Electricians Unlock Trade Access
Chint NB2LE RCBO features 1P+N 10A C curve, 6kA breaking capacity, 30mA Type A earth leakage protection, DIN rail mount. Ideal for final subcircuits.

Alternatively Known As: 10A RCBO, 1P+N RCBO, Type A Safety Switch, Residual Current Circuit Breaker with Overcurrent Protection

Technical Specifications
  • Rated Current: 10 A
  • Configuration: 1P+N with switched neutral
  • Tripping Curve: C curve
  • Residual Current Rating: 30 mA
  • Residual Current Type: Type A
  • Rated Voltage: 230 V AC
  • Frequency: 50/60 Hz
  • Breaking Capacity: 6 kA
  • Rated Insulation Voltage: 500 V AC
  • Rated Impulse Withstand Voltage: 4 kV
  • Electrical Endurance: 4,000 cycles
  • Mechanical Endurance: 20,000 cycles
  • Degree of Protection: IP20
  • Mounting: 35 mm DIN rail
  • Connection: Top connection
  • Width: 1 DIN module, 18 mm
  • Dimensions (H x L x W): 95mm x 77mm x 18mm
  • Weight: 0.18 kg
Key Features
  • Combines overload, short-circuit and earth-leakage protection in one device
  • Type A residual-current protection detects AC and pulsating DC residual currents
  • C-curve overcurrent protection suits circuits with moderate inrush currents
  • 1P+N configuration switches the active and neutral conductors
  • 6 kA rated short-circuit breaking capacity
  • Compact one-module design for distribution boards
  • Suitable for residential, commercial and industrial final subcircuits
  • Includes test functionality for residual-current protection verification
Professional Installation Requirements
  • Installation, testing and commissioning must be performed by a licensed electrician in accordance with AS/NZS 3000 and applicable state or territory electrical regulations. Confirm the prospective fault current, circuit characteristics and switchboard compatibility before installation.
Applications
  • Final subcircuits in residential distribution boards
  • Commercial electrical distribution boards
  • Industrial control and auxiliary circuits
  • Lighting and general-purpose power circuits
  • Circuits requiring combined overcurrent and 30 mA residual-current protection
Standards & Compliance
  • AS/NZS 61009.1:2015 incorporating Amendment 1:2024 for residual current circuit-breakers with integral overcurrent protection
Environmental Benefits
  • Combines two protection functions in one compact module, reducing switchboard space and material use compared with separate protective devices
  • Long mechanical and electrical service life can reduce replacement frequency and product waste
  • Compact electrical equipment typically contains recyclable metal and polymer components at end of life; dispose of through appropriate electrical recycling channels
Warranty Information

Up to 18 months from the date of sale for the end user, subject to CHINT warranty terms, authorised sales channels, correct installation and applicable exclusions.

Available Now

Available through authorised CHINT distributors in Australia.
