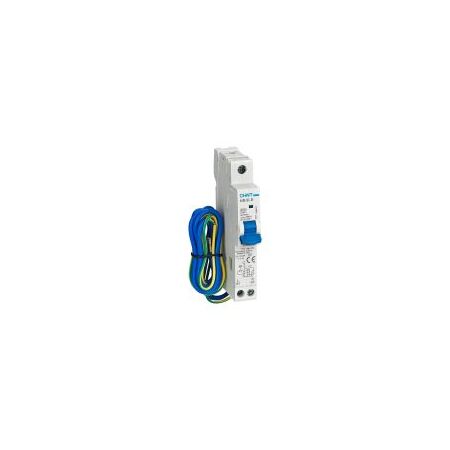

RCBO 1P+N C Curve 10A 30mA Type A 6kA NB3LE Chint

BRAND: CABAC
SKU: 392201
$52.80 List price: $70.30
+ −
30 Days Return Electricians Unlock Trade Access
Chint NB3LE RCBO features 1P+N 10A C curve, 6kA breaking capacity, 30mA Type A earth leakage protection, DIN rail mount. Ideal for final subcircuits.

Alternatively Known As: 10A RCBO, single-pole plus neutral RCBO, Type A safety switch, DIN rail RCBO

Technical Specifications
  • Rated Current: 10 A
  • Poles: 1P+N
  • Tripping Curve: C curve
  • RCD Type: Type A
  • Rated Residual Current: 30 mA
  • Rated Voltage: 240 V AC
  • Rated Frequency: 50/60 Hz
  • Rated Short-Circuit Capacity: 6 kA
  • Residual Making and Breaking Capacity: 2 kA
  • Breaking Time at Rated Residual Current: ≤0.1 s
  • Protection Degree: IP20
  • Terminal Connection: Cable, U-type busbar or pin-type busbar
  • Maximum Cable Terminal Capacity: 16 mm²
  • Tightening Torque: 2 N·m
  • Mounting: 35 mm DIN rail with fast-clip device
  • Operating Temperature: -5°C to +40°C
  • Electrical Life: 2,000 operations
  • Mechanical Life: 10,000 operations
  • Standard: IEC/EN 61009-1
  • Dimensions (H x L x W): 110mm x 76.5mm x 18mm
  • Weight: 0.2 kg
Key Features
  • Combined overload, short-circuit and earth leakage protection
  • Type A residual-current detection for AC and pulsating DC leakage currents
  • 1P+N configuration switches the active and neutral conductors
  • C-curve characteristic suits resistive and inductive loads with moderate inrush current
  • 6 kA rated short-circuit capacity
  • Compact one-module, 18 mm DIN rail format
  • Top connection for cable or busbar installation
  • Integral test button and contact position indication
Professional Installation Requirements
  • Installation, testing and replacement must be carried out by a licensed electrician in accordance with applicable Australian wiring rules and manufacturer instructions.
Applications
  • Final subcircuits in residential switchboards
  • Commercial and light-industrial distribution boards
  • Lighting and general power circuits
  • Protection of circuits supplying electronic equipment with pulsating DC leakage components
  • DIN rail switchboards and consumer units
Standards & Compliance
  • AS/NZS 61009.1:2015 for residual current operated circuit-breakers with integral overcurrent protection
  • RCM and SAA approval requirements should be verified for the specific supplied unit before installation
Environmental Benefits
  • Compact DIN rail design reduces material use and switchboard space requirements
  • Durable electromechanical construction can reduce replacement frequency and product waste
  • Metal and thermoplastic components may be recoverable through appropriate electrical equipment recycling streams
  • Integrated protection can help limit damage to connected electrical equipment and reduce premature replacement
Warranty Information

CHINT warranty policy provides 27 months from the date of manufacture for other low-voltage apparatus sold through authorised channels, subject to contract terms and exclusions for misuse or incorrect installation.

Available Now

Available through authorised CHINT distributors in Australia.
