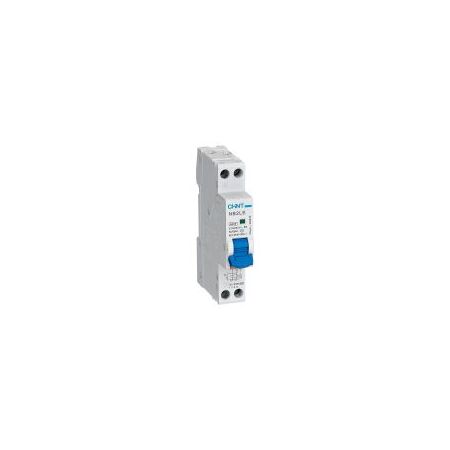

RCBO 1P+N C Curve 16A 30mA Type A 6kA NB2LE Chint

BRAND: CABAC
SKU: 689007
$51.40 List price: $68.50
+ −
30 Days Return Electricians Unlock Trade Access
Chint NB2LE RCBO features 1P+N 16A C curve, 6kA breaking capacity, 30mA Type A earth leakage protection, DIN rail mount. Ideal for final subcircuits.

Alternatively Known As: Residual Current Circuit Breaker with Overcurrent Protection, Safety Switch, Differential Circuit Breaker, CHINT 689007

Technical Specifications
  • Rated Current: 16 A
  • Configuration: 1P+N with switched neutral pole
  • Tripping Curve: Type C, 5–10 × In instantaneous tripping range
  • Residual Current Rating: 30 mA
  • Earth Leakage Type: Type A
  • Rated Voltage: AC 230/240 V
  • Rated Frequency: 50/60 Hz
  • Breaking Capacity: 6 kA Icn and Ics
  • Rated Impulse Withstand Voltage: 4 kV
  • Rated Insulation Voltage: 500 V AC
  • Power Dissipation: 2 W
  • Protection Rating: IP20
  • Mounting: 35 mm DIN rail, TH35-7.5
  • DIN Width: 1 module
  • Connection: Top connection
  • Electrical Life: 2,000 cycles
  • Mechanical Life: 2,000 cycles
  • Australian Certification: SAA Certificate SAA-250245-EA with RCM approval listed
  • Dimensions (H x L x W): 95mm x 77mm x 18mm
  • Weight: 0.13 kg
Key Features
  • Combines overload, short-circuit and residual current protection in one device
  • Type A protection detects AC and pulsating DC residual currents
  • C-curve protection is suitable for final subcircuits with moderate inrush currents
  • 1P+N configuration switches the active and neutral conductors
  • Compact one-module DIN rail format
  • 6 kA short-circuit breaking capacity
  • 30 mA sensitivity provides additional protection against electric shock
  • Suitable for residential, commercial and industrial distribution boards
  • Includes a test function for checking residual-current operation
Professional Installation Requirements
  • Installation, testing and commissioning must be carried out by a licensed electrician in accordance with AS/NZS 3000, the manufacturer's instructions and applicable local electrical regulations.
Applications
  • Final subcircuits in residential switchboards
  • Lighting and general power circuits
  • Socket-outlet and small appliance circuits
  • Commercial and industrial distribution boards
  • Overload, short-circuit and earth-leakage protection in AC 230/240 V installations
Standards & Compliance
  • AS/NZS 61009.1:2015 with Amendment 1:2024
  • SAA Certificate SAA-250245-EA covering the CHINT NB2LE RCBO range
  • RCM approval listed in accordance with Australian electrical equipment requirements
  • Installation and circuit selection must comply with AS/NZS 3000
Environmental Benefits
  • Combines circuit-breaker and residual-current protection in one compact device, reducing switchboard space and material use compared with separate protective devices
  • Long mechanical and electrical service life can reduce replacement frequency and associated waste
  • Compact DIN rail design supports efficient use of electrical enclosure materials
Warranty Information

CHINT warranty policy provides 27 months from the date of manufacture for other low-voltage apparatus sold through authorised sales channels, subject to the applicable sales contract and warranty conditions.

Available Now

Available through authorised CHINT distributors in Australia.
