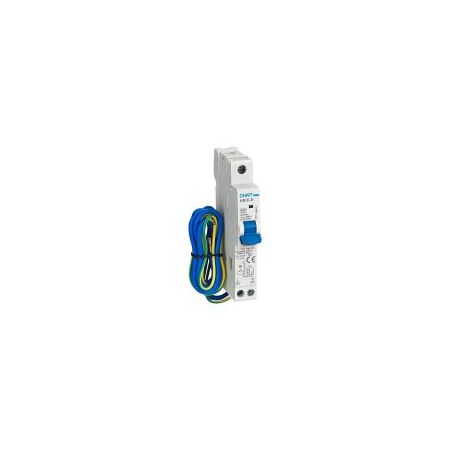

RCBO 1P+N C Curve 16A 30mA Type A 6kA NB3LE Chint

BRAND: CABAC
SKU: 392202
$52.80 List price: $70.30
+ −
30 Days Return Electricians Unlock Trade Access
Chint NB3LE RCBO features 1P+N 16A C curve, 6kA breaking capacity, 30mA Type A earth leakage protection, DIN rail mount. Ideal for final subcircuits.

Alternatively Known As: NB3LE-C16 RCBO, 16A 30mA Type A RCBO, single-pole plus neutral circuit breaker

Technical Specifications
  • Rated Current: 16A
  • Number of Poles: 1P+N
  • Tripping Curve: C curve
  • Residual Current Type: Type A
  • Rated Residual Current: 30mA
  • Rated Voltage: 240V AC
  • Rated Frequency: 50/60Hz
  • Rated Short-Circuit Capacity: 6kA
  • Residual Making and Breaking Capacity: 2kA
  • Trip Time at Rated Residual Current: ≤0.1 seconds
  • Terminal Connection: Cable, U-type busbar or pin-type busbar
  • Cable Connection Capacity: Up to 16mm²
  • Busbar Connection Capacity: Up to 10mm²
  • Terminal Tightening Torque: 2Nm
  • Protection Degree: IP20
  • Operating Temperature: -5°C to +40°C
  • Storage Temperature: -25°C to +70°C
  • Electrical Life: 2,000 operations
  • Mechanical Life: 2,000 operations
  • Dimensions (H x L x W): 113.5mm x 76.5mm x 18mm
  • Weight: 0.18 kg
Key Features
  • Combines overload, short-circuit and earth leakage protection in one device
  • Type A residual current detection responds to AC and pulsating DC leakage currents
  • C curve characteristics suit resistive and inductive loads with moderate starting currents
  • Compact 1P+N configuration occupies one 18mm DIN rail module
  • Fast-clip mounting for 35mm DIN rails
  • Top and bottom terminal connection options
  • Contact position indication
  • Suitable for residential and commercial distribution boards
Professional Installation Requirements
  • Installation, testing and commissioning must be performed by a licensed electrician in accordance with AS/NZS 3000 and applicable electrical safety regulations. Verify the prospective fault current, board compatibility and correct neutral connection before energising.
Applications
  • Final subcircuits in residential switchboards
  • Lighting and general power circuits
  • Commercial distribution boards
  • Residential distribution boards
  • Protection of single-phase electrical equipment and circuits
Standards & Compliance
  • AS/NZS 61009.1:2015 for residual current circuit breakers with integral overcurrent protection
  • AS/NZS 3000:2018 for selection and installation within Australian and New Zealand electrical installations
Environmental Benefits
  • Compact one-module construction can reduce switchboard space and enclosure material requirements
  • Durable electromechanical construction supports extended service life and reduced replacement waste
  • Metal conductors and enclosure components can be recovered through appropriate electrical equipment recycling streams
Warranty Information

CHINT warranty policy states that other low-voltage apparatus supplied through authorised sales channels is covered against defects in materials and workmanship for 27 months from the date of manufacture, subject to applicable terms and conditions.

Available Now

Available through authorised CHINT distributors in Australia.
