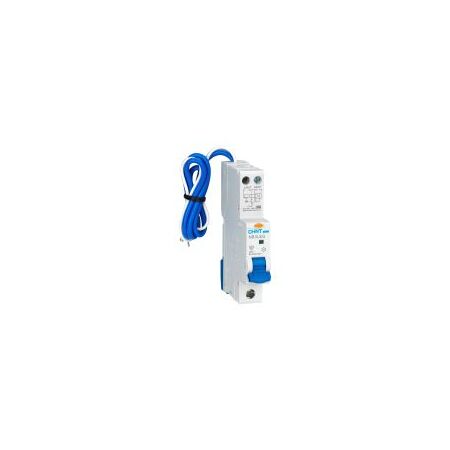

RCBO 1P+N C Curve 16A 30mA Type A 6kA NB3LEG Chint

BRAND: CABAC
SKU: 312407
$48.40 List price: $64.50
+ −
30 Days Return Electricians Unlock Trade Access
Chint NB3LEG RCBO features 1P+N 16A C curve, 6kA breaking capacity, 30mA Type A earth leakage protection, DIN rail mount. Ideal for final subcircuits.

Alternatively Known As: Residual Current Circuit Breaker with Overcurrent Protection, Type A RCBO, 1P+N RCBO, DIN Rail RCBO

Technical Specifications
  • Rated Current: 16 A
  • Poles: 1P+N
  • Tripping Curve: C
  • Residual Current Type: Type A
  • Rated Residual Operating Current: 30 mA
  • Rated Short-Circuit Capacity: 6 kA
  • Rated Voltage: 240 V AC
  • Rated Frequency: 50 Hz
  • Breaking Time at Rated Residual Current: ≤0.1 s
  • Mounting: 35 mm DIN rail
  • Terminal Capacity: Up to 16 mm² cable or 10 mm² busbar
  • Protection Function: Overload, short-circuit and earth-leakage protection
  • Protection Degree: IP20
  • Dimensions (H x L x W): 110mm x 76.5mm x 18mm
  • Weight: 0.14 kg
Key Features
  • Combines miniature circuit-breaker and residual-current protection in one compact device
  • Type A detection responds to sinusoidal AC and pulsating DC residual currents
  • C-curve protection is suitable for mixed resistive and inductive loads
  • 1P+N configuration switches the active conductor while providing neutral connection
  • 6kA short-circuit breaking capacity
  • 30mA residual-current protection for additional personal protection
  • Fast clip-on installation on standard 35mm DIN rail
  • Visible contact position indicator
Professional Installation Requirements
  • Installation and connection to mains electrical circuits must be carried out by a licensed electrician in accordance with applicable wiring rules, manufacturer instructions and local regulatory requirements.
Applications
  • Final subcircuits in residential distribution boards
  • Lighting and general-purpose socket-outlet circuits
  • Small commercial and light-industrial final circuits
  • Protection of mixed resistive and inductive loads
  • Distribution boards requiring combined overcurrent and earth-leakage protection
Standards & Compliance
  • AS/NZS 61009.1 for residual current operated circuit-breakers with integral overcurrent protection
Environmental Benefits
  • Combines overcurrent and residual-current protection in one device, reducing the number of separate components required in a switchboard
  • Compact DIN-rail format can reduce switchboard material and space requirements
  • Long mechanical and electrical operating life helps reduce replacement frequency and associated waste
Warranty Information

CHINT warranty policy provides 27 months from the date of manufacture for other low-voltage apparatus, subject to sale through authorised channels and any applicable contract terms.

Available Now

Available through authorised CHINT distributors in Australia.
