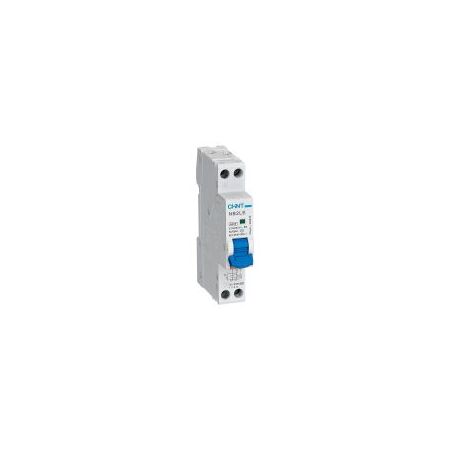

RCBO 1P+N C Curve 25A 30mA Type A 6kA NB2LE Chint

BRAND: CABAC
SKU: 689009
$51.40 List price: $68.50
+ −
30 Days Return Electricians Unlock Trade Access
Chint NB2LE RCBO features 1P+N 25A C curve, 6kA breaking capacity, 30mA Type A earth leakage protection, DIN rail mount. Ideal for final subcircuits.

Alternatively Known As: Residual Current Circuit Breaker with Overcurrent Protection, Type A RCBO, 25A RCBO

Technical Specifications
  • Model: NB2LE
  • Article Number: 689009
  • Poles: 1P+N
  • Rated Current: 25 A
  • Tripping Curve: Type C
  • Residual Current Sensitivity: 30 mA
  • Residual Current Type: Type A
  • Rated Voltage: 230 V AC
  • Frequency: 50/60 Hz
  • Breaking Capacity: 6 kA
  • Rated Insulation Voltage: 500 V
  • Rated Impulse Withstand Voltage: 4 kV
  • Protection Degree: IP20
  • DIN Rail Width: 1 module, 18 mm
  • Power Dissipation: 2 W
  • Connection: Top connection
  • Electrical Endurance: 4,000 cycles
  • Mechanical Endurance: 10,000 cycles
  • Dimensions (H x L x W): 95mm x 77mm x 18mm
  • Weight: 0.131 kg
Key Features
  • Combines overload, short-circuit and earth leakage protection in one device
  • Type A residual current protection detects AC and pulsating DC leakage currents
  • C-curve operation suits final subcircuits with moderate inrush currents
  • 1P+N configuration switches the active and neutral conductors
  • Compact one-module DIN rail format
  • Suitable for residential, commercial and light industrial distribution boards
Professional Installation Requirements
  • Installation, testing and commissioning must be performed by a licensed electrician in accordance with AS/NZS 3000, manufacturer instructions and applicable local electrical regulations.
Applications
  • Final subcircuits in residential switchboards
  • Lighting and general power circuits
  • Commercial distribution boards
  • Small HVAC and electrical equipment circuits
  • Industrial control and auxiliary circuits
Standards & Compliance
  • AS/NZS 61009.1 for residual current operated circuit-breakers with integral overcurrent protection
  • AS/NZS 3000 for selection, installation and testing within electrical installations
Environmental Benefits
  • Combined circuit and residual-current protection can help prevent equipment damage and reduce premature replacement waste
  • Compact one-module design reduces switchboard space and material use
  • Metal and thermoplastic components can be separated for appropriate end-of-life recycling where local facilities accept electrical equipment
  • Long mechanical and electrical endurance supports extended service life
Warranty Information

CHINT's general warranty policy provides up to 27 months from the date of manufacture for other low-voltage apparatus sold through authorised channels; local contract and distributor terms may vary.

Available Now

Available through authorised CHINT distributors in Australia.
