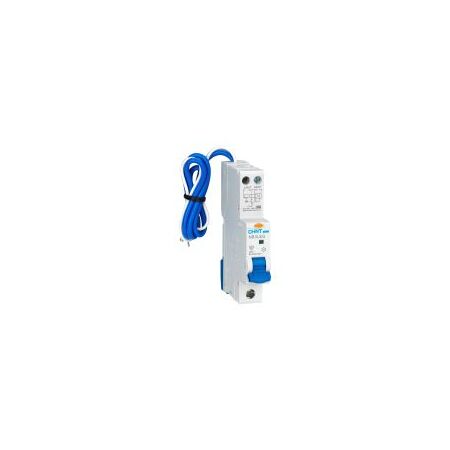

RCBO 1P+N C Curve 25A 30mA Type A 6kA NB3LEG Chint

BRAND: CABAC
SKU: 312409
$48.40 List price: $64.50
+ −
30 Days Return Electricians Unlock Trade Access
Chint NB3LEG RCBO features 1P+N 25A C curve, 6kA breaking capacity, 30mA Type A earth leakage protection, DIN rail mount. Ideal for final subcircuits.

Alternatively Known As: CHINT NB3LEG-C25 RCBO, single-pole plus neutral RCBO, Type A safety switch with overcurrent protection

Technical Specifications
  • Rated Current: 25A
  • Poles: 1P+N with uninterrupted neutral
  • Tripping Curve: C curve, 5–10 times rated current
  • Residual Current Type: Type A, AC and pulsating DC leakage detection
  • Rated Voltage: 230–240V AC
  • Rated Frequency: 50/60Hz
  • Residual Current Sensitivity: 30mA
  • Short-Circuit Capacity: 6kA
  • Residual Making and Breaking Capacity: 3kA
  • Insulation Voltage: 500V
  • Impulse Withstand Voltage: 4kV
  • Protection Rating: IP20
  • Mounting: 35mm DIN rail with fast-clip mechanism
  • Terminal Connection: Cable, U-type busbar or pin-type busbar
  • Maximum Cable Terminal Size: 16mm²
  • Electrical Life: 2,000 operations
  • Mechanical Life: 2,000 operations
  • Dimensions (H x L x W): 98mm x 77mm x 18mm
  • Weight: 0.3 kg
Key Features
  • Combines overload, short-circuit and residual-current protection in one device
  • Type A detection is suitable for modern electronic loads producing pulsating DC leakage currents
  • 1P+N configuration provides phase protection with switched or uninterrupted neutral arrangement as specified
  • Compact one-module, 18mm-wide design for residential and commercial distribution boards
  • Visible contact-position indication for easier inspection and maintenance
  • C curve is suitable for general-purpose resistive and inductive final subcircuits with moderate inrush current
  • Fast clip-on installation to standard 35mm DIN rail
Professional Installation Requirements
  • Installation, testing and commissioning must be performed by a licensed electrician in accordance with applicable state or territory electrical regulations, AS/NZS 3000 and the manufacturer's instructions.
Applications
  • Final subcircuits in residential switchboards
  • Lighting and general power circuits
  • Protection of socket-outlet circuits and mixed electronic loads
  • Small commercial distribution boards
  • Low-voltage control and distribution installations
Standards & Compliance
  • AS/NZS 61009.1:2015 national differences checked for the NB3LEG-40 RCBO series
  • IEC/EN 61009-1 requirements for residual current circuit-breakers with integral overcurrent protection
Environmental Benefits
  • Combines two protective functions in one compact device, reducing switchboard space and material requirements
  • Helps limit damage to electrical equipment and reduce fire-related material loss by disconnecting overload, short-circuit and earth-leakage faults
  • Durable DIN-mounted construction supports a long service life and reduces replacement waste
Warranty Information

CHINT's general warranty policy provides 27 months from the date of manufacture for other low-voltage apparatus sold through authorised sales channels, subject to the applicable contract and warranty conditions.

Available Now

Available through authorised CHINT distributors in Australia.
