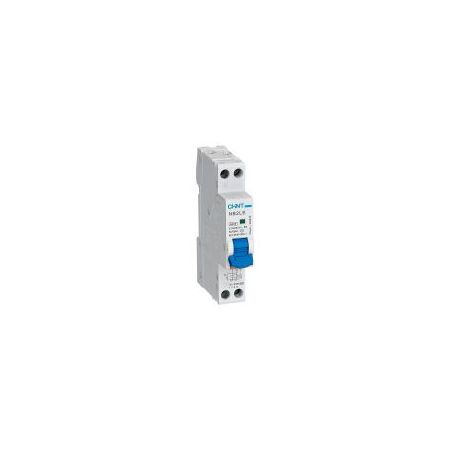

RCBO 1P+N C Curve 32A 30mA Type A 4.5kA NB2LE-N Chint

BRAND: CABAC
SKU: 266915
$41.20 List price: $55.00
+ −
30 Days Return Electricians Unlock Trade Access
Chint NB2LE-N RCBO features 1P+N 32A C curve, 4.5kA breaking capacity, 30mA Type A earth leakage protection, DIN rail mount. Ideal for final subcircuits.

Alternatively Known As: CHINT NB2LE-N residual current circuit breaker with overcurrent protection, 1P+N safety switch, compact RCBO

Technical Specifications
  • Rated Current: 32A
  • Rated Voltage: AC 230/240V
  • Frequency: 50/60Hz
  • Configuration: 1P+N
  • Tripping Curve: C curve, 5–10 x In
  • Breaking Capacity: 4.5kA
  • Residual Operating Current: 30mA
  • Earth Leakage Type: Type A
  • Mounting: DIN rail, EN 60715 35mm
  • Connection: Top or bottom cable and busbar connection
  • Electrical Life: 2,000 cycles
  • Mechanical Life: 2,000 cycles
  • Device Width: 18mm
  • Dimensions (H x L x W): 95mm x 77mm x 18mm
  • Weight: 0.15 kg
Key Features
  • Combines overload, short-circuit and earth leakage protection in one device
  • Type A residual current protection detects AC and pulsating DC leakage currents
  • C curve suits general final subcircuits and moderate inrush loads
  • Compact 18mm-wide 1P+N design saves switchboard space
  • Non-directional connection simplifies installation
  • DIN rail mounting for residential, commercial and light industrial distribution boards
  • Test function for checking residual current operation
Professional Installation Requirements
  • Installation, testing and commissioning must be performed by a licensed electrician in accordance with AS/NZS 3000 and applicable state or territory electrical safety requirements.
Applications
  • Final subcircuits in residential switchboards
  • Power and lighting circuits in small commercial installations
  • General socket-outlet and appliance circuits
  • Distribution boards requiring combined overcurrent and residual current protection
  • Replacement of separate miniature circuit breaker and residual current device arrangements
Standards & Compliance
  • AS/NZS 61009.1 for residual current operated circuit-breakers with integral overcurrent protection
  • AS/NZS 3000 for electrical installation, selection and testing requirements
Environmental Benefits
  • Combines two protective functions in one compact device, reducing switchboard material and installation space requirements
  • Long electrical and mechanical service life can reduce replacement frequency and product waste
  • Helps limit damage to electrical equipment by disconnecting circuits during overload, short-circuit or earth leakage faults
Warranty Information

CHINT warranty policy provides 27 months from the date of manufacture for other low-voltage apparatus sold through authorised sales channels, subject to applicable contract terms and exclusions.

Available Now

Available through authorised CHINT distributors in Australia.
