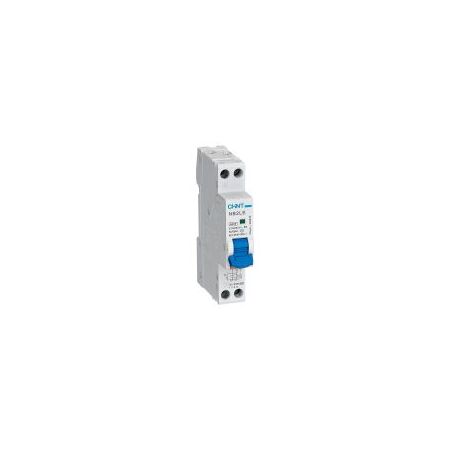

RCBO 1P+N C Curve 32A 30mA Type A 6kA NB2LE Chint

BRAND: CABAC
SKU: 252638
$51.40 List price: $68.50
+ −
30 Days Return Electricians Unlock Trade Access
Chint NB2LE RCBO features 1P+N 32A C curve, 6kA breaking capacity, 30mA Type A earth leakage protection, DIN rail mount. Ideal for final subcircuits.

Alternatively Known As: CHINT NB2LE RCBO, 32A Type A RCBO, 1P+N residual current circuit-breaker with overcurrent protection

Technical Specifications
  • Rated Current: 32 A
  • Poles: 1P+N
  • Tripping Curve: Type C, 5–10 × In magnetic operating range
  • Residual Current Sensitivity: 30 mA
  • Residual Current Type: Type A
  • Rated Voltage: AC 230/240 V
  • Frequency: 50/60 Hz
  • Breaking Capacity: 6 kA
  • Insulation Voltage: 500 V AC
  • Impulse Withstand Voltage: 4 kV
  • Power Dissipation: 2 W
  • Protection Rating: IP20
  • DIN Rail Width: 1 module, 18 mm
  • Connection: Top connection
  • Dimensions (H x L x W): 95mm x 18mm x 77mm
  • Weight: 0.18 kg
Key Features
  • Combines overload, short-circuit and earth leakage protection in one device
  • Type A residual current detection for AC and pulsating DC fault currents
  • C-curve protection suitable for circuits with moderate inrush currents
  • 1P+N switching and protection configuration
  • 6 kA short-circuit breaking capacity
  • Compact one-module DIN rail format
  • Suitable for residential, commercial and industrial final subcircuits
Professional Installation Requirements
  • Installation, testing and commissioning must be performed by a licensed electrician in accordance with AS/NZS 3000 and applicable local electrical regulations. Confirm enclosure, fault level, conductor sizing and coordination requirements before installation.
Applications
  • Residential final subcircuits
  • Commercial distribution boards
  • Industrial control and auxiliary circuits
  • Lighting and general power circuits
  • Circuits supplying electronic equipment with pulsating DC leakage components
Standards & Compliance
  • IEC/EN 61009-1
  • AS/NZS 61009.1:2015, the applicable Australian/New Zealand standard reference for RCBOs
  • Installation in Australia should comply with AS/NZS 3000 Wiring Rules and applicable RCM requirements
Environmental Benefits
  • Combines multiple protection functions in one compact device, reducing switchboard material and space requirements
  • Low stated power dissipation of 2 W helps minimise operating energy losses
  • Durable protective equipment can reduce replacement frequency and electrical equipment waste
  • Metal components and thermoplastic housing materials may be recoverable through appropriate electrical equipment recycling streams
Warranty Information

CHINT warranty policy provides 27 months from the date of manufacture for other low-voltage apparatus sold through authorised sales channels, subject to the applicable contract and warranty conditions.

Available Now

Available through authorised CHINT distributors in Australia.
