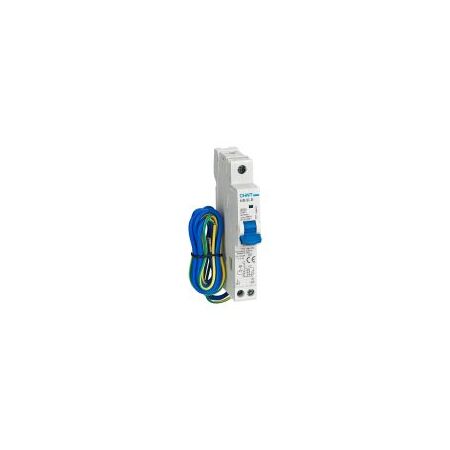

RCBO 1P+N C Curve 32A 30mA Type A 6kA NB3LE Chint

BRAND: CABAC
SKU: 392205
$52.80 List price: $70.30
+ −
30 Days Return Electricians Unlock Trade Access
Chint NB3LE RCBO features 1P+N 32A C curve, 6kA breaking capacity, 30mA Type A earth leakage protection, DIN rail mount. Ideal for final subcircuits.

Alternatively Known As: CHINT NB3LE-32 C32 RCBO, single-pole-plus-neutral RCBO, Type A safety switch with overcurrent protection

Technical Specifications
  • Rated Current: 32 A
  • Poles: 1P+N
  • Rated Voltage: 240 V AC
  • Rated Frequency: 50/60 Hz
  • Tripping Curve: C curve, 5–10 times rated current
  • Residual Current Type: Type A, detects AC and pulsating DC leakage
  • Rated Residual Operating Current: 30 mA
  • Rated Short-Circuit Capacity: 6 kA
  • Rated Residual Making and Breaking Capacity: 2 kA
  • Trip Time at Rated Residual Current: ≤0.1 seconds
  • Release Type: Electronic residual-current protection with thermal-magnetic overcurrent release
  • Mounting: 35 mm DIN rail with fast clip-on mechanism
  • Terminal Capacity: Up to 16 mm² cable or 10 mm² busbar
  • Connection: Top cable, U-type busbar or pin-type busbar connection
  • Protection Degree: IP20
  • Electrical Life: 2,000 operations
  • Mechanical Life: 20,000 operations
  • Operating Temperature: −5°C to +40°C
  • Dimensions (H x L x W): 110mm x 76.5mm x 18mm
  • Weight: 0.14 kg
Key Features
  • Combines earth leakage, overload and short-circuit protection in one device
  • Type A residual-current detection for AC and pulsating DC leakage currents
  • C-curve protection suited to mixed resistive and inductive loads with moderate inrush current
  • 1P+N configuration switches and protects the active circuit while providing neutral isolation
  • 6 kA short-circuit breaking capacity
  • Compact 18 mm wide design for switchboards and distribution boards
  • Fast clip-on mounting for 35 mm DIN rails
  • Top connection supports cable and common busbar connection types
  • Visual contact-position indicator
Professional Installation Requirements
  • Installation, replacement and testing must be performed by a licensed electrician in accordance with the manufacturer's instructions and AS/NZS 3000 Wiring Rules. Verify the installation's fault level, circuit loading, discrimination and current Australian registration requirements before use.
Applications
  • Final subcircuits in residential switchboards
  • Commercial distribution boards
  • Small industrial electrical installations
  • Lighting and power circuits requiring combined overcurrent and residual-current protection
  • Circuits supplying mixed resistive and inductive loads
Standards & Compliance
  • AS/NZS 61009.1:2015 for residual current circuit-breakers with integral overcurrent protection
  • AS/NZS 3000:2018 Wiring Rules for electrical installation and circuit protection requirements
Environmental Benefits
  • Combines multiple protective functions in one compact device, reducing switchboard component and material requirements
  • DIN rail design supports replacement of the protective device without replacing the surrounding switchboard assembly
  • Long mechanical life of up to 20,000 operations can reduce replacement frequency and electrical waste
Warranty Information

CHINT warranty policy states that other low-voltage apparatus sold through authorised channels is covered against defects in materials and workmanship for 27 months from the date of manufacture, subject to applicable contract terms and exclusions.

Available Now

Available through authorised CHINT distributors in Australia.
