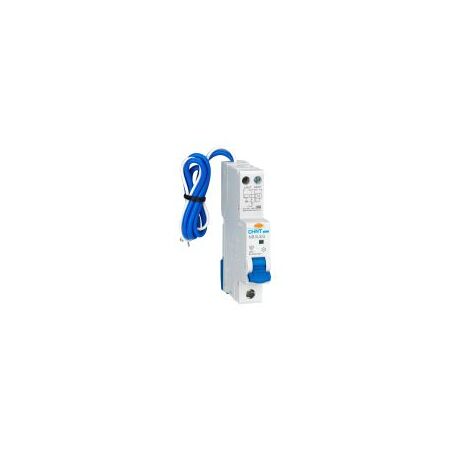

RCBO 1P+N C Curve 32A 30mA Type A 6kA NB3LEG Chint

BRAND: CABAC
SKU: 312410
$48.40 List price: $64.50
+ −
30 Days Return Electricians Unlock Trade Access
Chint NB3LEG RCBO features 1P+N 32A C curve, 6kA breaking capacity, 30mA Type A earth leakage protection, DIN rail mount. Ideal for final subcircuits.

Alternatively Known As: CHINT NB3LEG C32 RCBO, 1P+N RCBO, Type A safety switch, residual current circuit breaker with overload protection

Technical Specifications
  • Rated Current: 32A
  • Rated Voltage: 240V AC
  • Rated Frequency: 50Hz
  • Poles: 1P+N with uninterrupted neutral
  • Tripping Curve: C curve
  • Residual Current Type: Type A
  • Rated Residual Operating Current: 30mA
  • Rated Short-Circuit Capacity: 6kA
  • Residual Making and Breaking Capacity: 3kA
  • Break Time at Rated Residual Current: ≤0.1s
  • Impulse Withstand Voltage: 4kV
  • Rated Insulation Voltage: 500V
  • Protection Degree: IP20
  • Ambient Operating Temperature: -5°C to +40°C
  • Terminal Capacity: Up to 16mm² cable or 10mm² busbar
  • Terminal Tightening Torque: 2N·m
  • Mounting: 35mm DIN rail to EN 60715
  • Connection: Bottom connection
  • Electrical and Mechanical Life: 2,000 cycles
  • Dimensions (H x L x W): 102mm x 77mm x 18mm
  • Weight: 0.23 kg
Key Features
  • Combines overload, short-circuit and earth leakage protection in one device
  • Type A detection responds to sinusoidal AC and pulsating DC residual currents
  • C-curve characteristic suited to resistive and inductive loads with moderate starting current
  • 1P+N configuration switches the active conductor while providing uninterrupted neutral
  • 6kA short-circuit breaking capacity
  • Visible contact position indication
  • Suitable for residential, commercial and light industrial distribution boards
  • Compact DIN rail mounting for final subcircuit protection
Professional Installation Requirements
  • Installation, testing and replacement must be performed by a licensed electrician in accordance with AS/NZS 3000, the manufacturer's instructions and applicable local electrical regulations.
Applications
  • Final subcircuits in residential switchboards
  • Lighting and socket-outlet circuits
  • Commercial distribution boards
  • Small motor, pump and mixed-load circuits with moderate inrush current
  • Protection of circuits supplying modern electronic equipment
Standards & Compliance
  • AS/NZS 61009.1 is the applicable Australian/New Zealand product standard for RCBOs
  • Designed and specified to BS EN 61009-1 requirements
  • SAA Approval certificate SAA-210191-EA covers the CHINT NB3LEG-40 family, including 32A Type A C-curve models
Environmental Benefits
  • Combines multiple protective functions in one compact device, reducing switchboard material and installation space
  • Type A protection supports safe operation of modern electronic loads and helps reduce equipment damage from residual-current faults
  • Reusable electrical protection device designed for an extended service life, reducing replacement waste
  • Plastic and metal components may be recyclable through appropriate electrical equipment recycling streams
Warranty Information

CHINT's general warranty policy provides 27 months from the date of manufacture for other low-voltage apparatus sold through authorised channels, subject to the applicable sales contract and warranty conditions.

Available Now

Available through authorised CHINT distributors in Australia.
