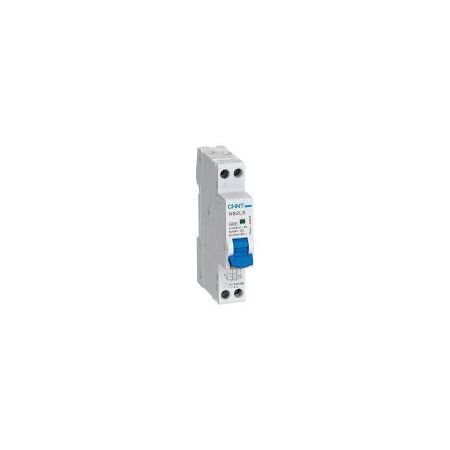

RCBO 1P+N C Curve 6A 30mA Type A 4.5kA NB2LE-N Chint
Chint NB2LE-N RCBO features 1P+N 6A C curve, 4.5kA breaking capacity, 30mA Type A earth leakage protection, DIN rail mount. Ideal for final subcircuits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: 1P+N RCBO, Miniature RCBO, Residual Current Circuit Breaker with Overcurrent Protection, Safety Switch with Circuit Breaker
Technical Specifications
- Rated Current: 6A
- Configuration: 1P+N
- Rated Voltage: AC 230/240V
- Rated Frequency: 50/60Hz
- Tripping Curve: C curve, instantaneous operation at 5–10 times rated current
- Earth Leakage Type: Type A
- Rated Residual Current: 30mA
- Breaking Capacity: 4.5kA
- Electrical Life: 2,000 cycles
- Mechanical Life: 2,000 cycles
- Mounting: 35mm DIN rail, EN 60715
- Module Width: 18mm
- Connection: Top and bottom connection
- Dimensions (H x L x W): 95mm x 77mm x 18mm
- Weight: 0.125 kg
Key Features
- Combines overload, short-circuit and earth leakage protection in one device
- 1P+N configuration switches the active and neutral conductors
- Type A residual-current detection for AC and pulsating DC fault currents
- C-curve protection suited to final subcircuits with moderate inrush current
- Compact one-module design for space-efficient distribution boards
- Fast-clip mounting for standard 35mm DIN rail installation
- 30mA residual-current protection for additional protection against electric shock
Professional Installation Requirements
- Installation, replacement and testing must be performed by a licensed electrician in accordance with AS/NZS 3000 and the manufacturer's instructions.
Applications
- Residential final subcircuits
- Commercial and light-industrial distribution boards
- Lighting and general-purpose power circuits
- Control circuits and equipment with moderate starting or inrush currents
- Switchboards requiring compact 1P+N overcurrent and earth leakage protection
Standards & Compliance
- AS/NZS 61009.1:2015 – applicable product standard for residual current operated circuit-breakers with integral overcurrent protection
- AS/NZS 3000:2018 – electrical installation and wiring requirements for installation in Australia
Environmental Benefits
- Combines two protective functions in one compact device, reducing switchboard material and installation space requirements
- Durable electromechanical construction supports extended service life and reduced replacement waste
- Plastic and metal components can be separated for responsible end-of-life recycling where local facilities accept electrical equipment
Warranty Information
CHINT's general warranty policy covers other low-voltage apparatus against defects in materials and workmanship for 27 months from the date of manufacture when purchased through authorised sales channels. Contract-specific terms may vary.
Available Now
Available through authorised CHINT distributors in Australia.
